Figure 2
From: I8-arachnotocin–an arthropod-derived G protein-biased ligand of the human vasopressin V2 receptor

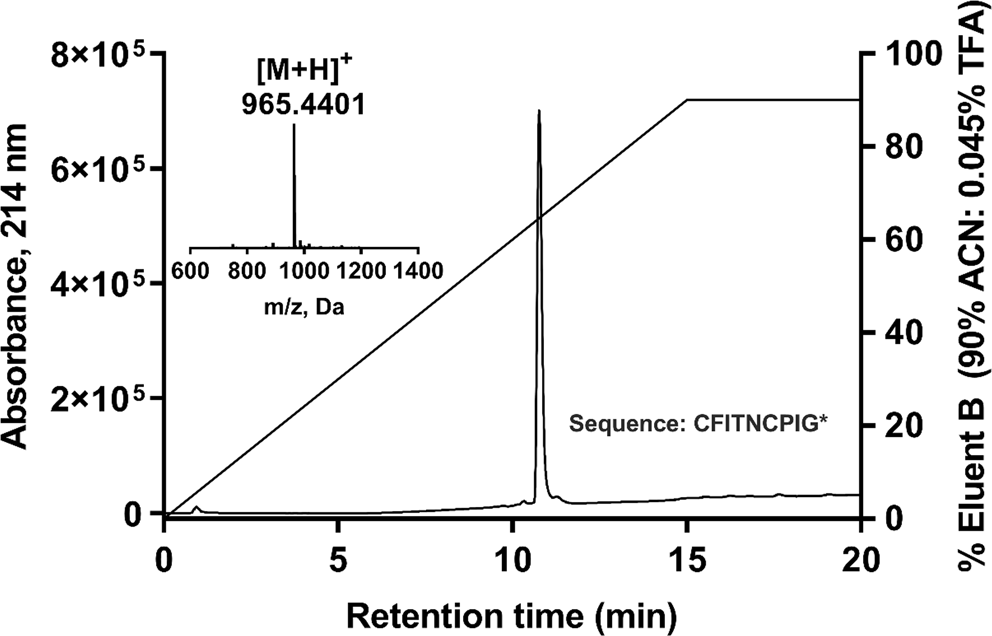

Quality of synthetic I8-arachnotocin. Analytical RP-HPLC of the purified I8-arachnotocin (purity > 95%). Inset: high resolution MS of the product with the observed molecular weight of 964.44 Da (theoretical: 964.44 Da). ACN = acetonitrile; TFA = trifluoroacetic acid; *C-terminus amidated.
