From: Discovery of Ganoderma lucidum triterpenoids as potential inhibitors against Dengue virus NS2B-NS3 protease

Figure 3

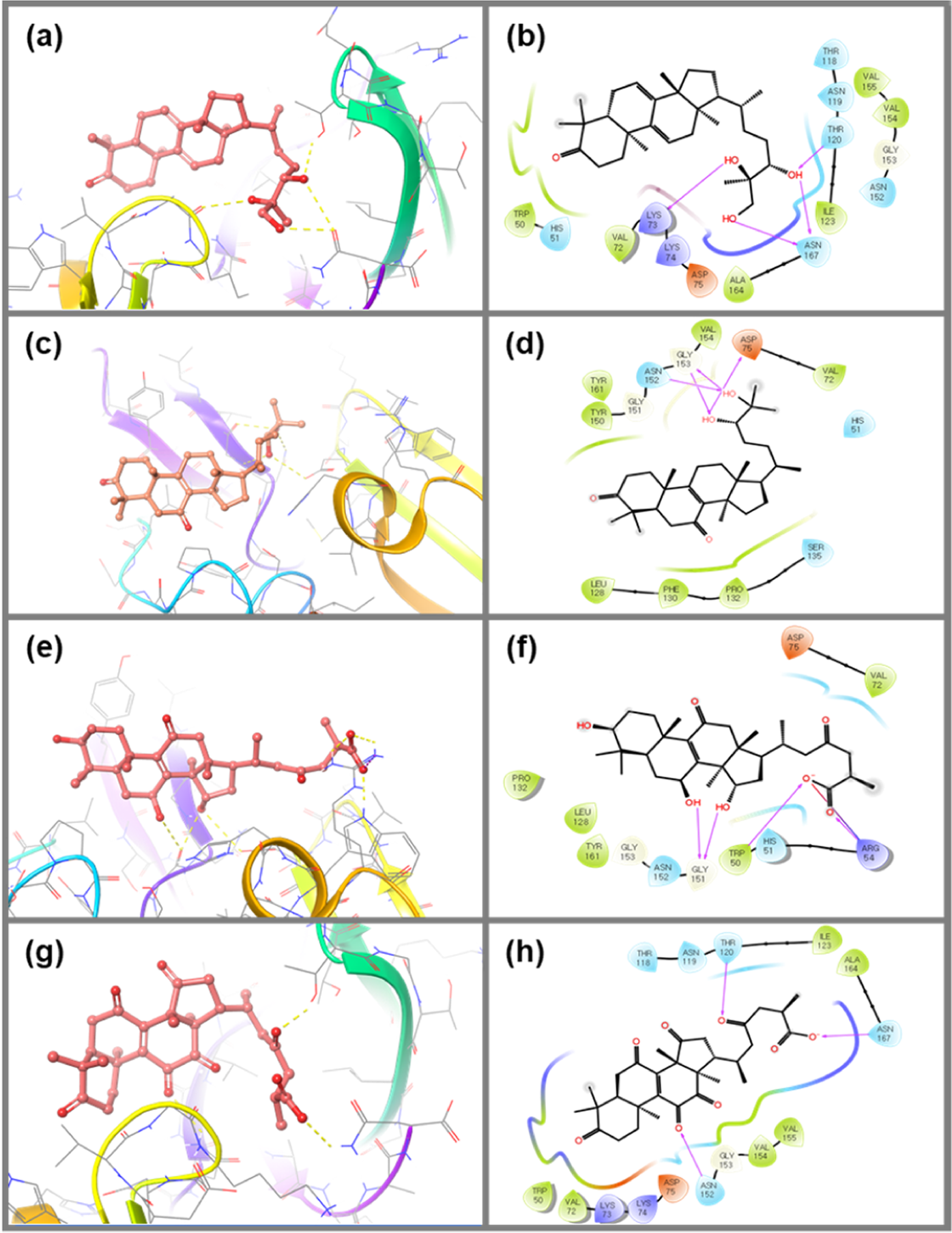

3D and 2D docked complexes of the NS3pro domain exhibiting intermolecular contacts with respective screened triterpenoids; (a,b) NS3pro-Ganodermanontriol complex, (c,d) NS3pro-Lucidumol A complex, (e,f) NS3pro-Ganoderic acid C2 (g,h) NS3pro-Ganosporeric acid A. In 2D complexes, residues in green, violet, red, blue and gray color represents the hydrophobic, positive, negative, polar and glycine interaction, respectively and pink arrows shows the hydrogen bond formation.
