Figure 5
From: The transport of liquids in softwood: timber as a model porous medium

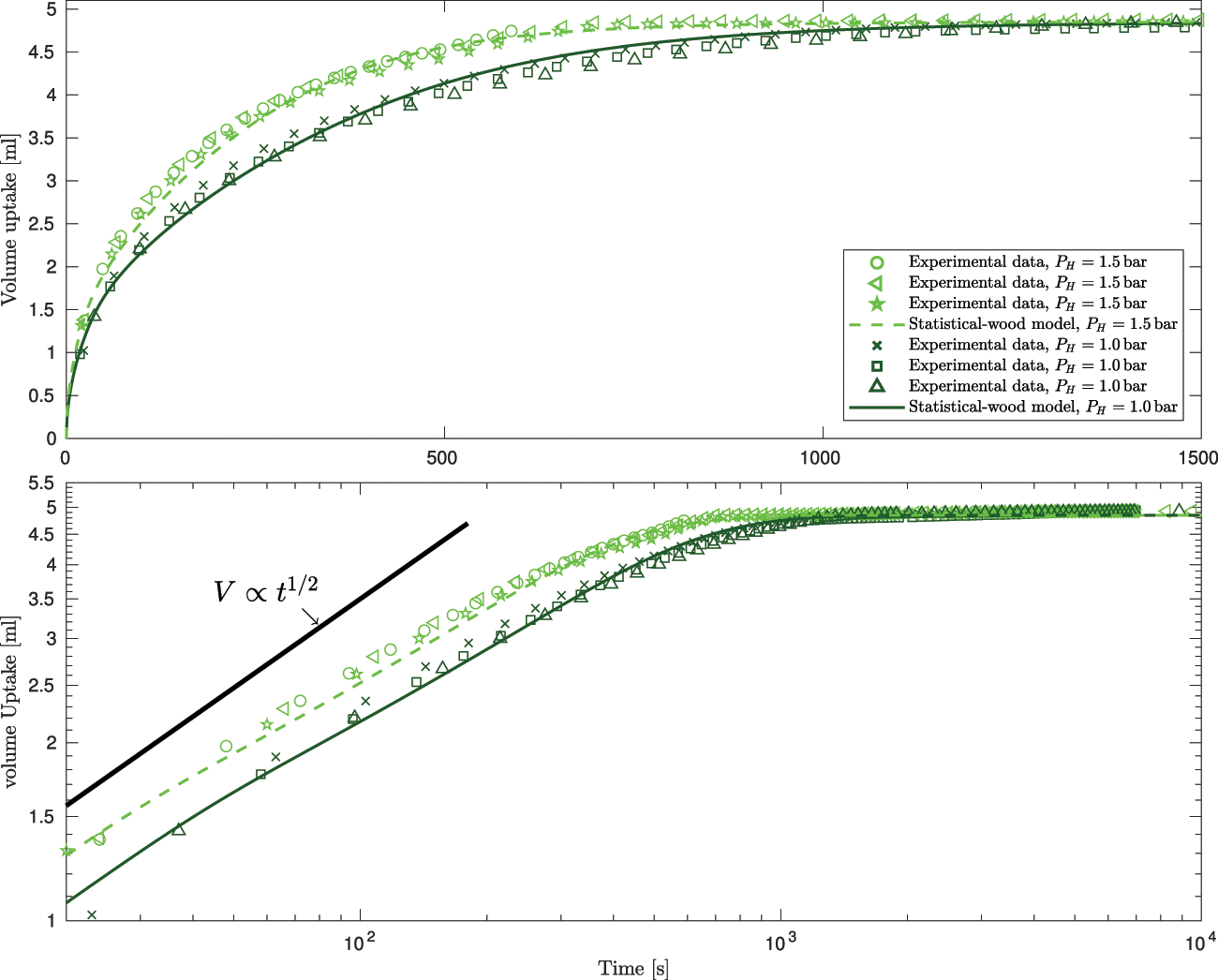

Data from six independent experiments on specimen 3 at two different imposed pressures: dark-green markers denote data for \({P}_{H}=1.0\,{\rm{bar}}\) and light-green markers \({P}_{H}=1.5\,{\rm{bar}}\). The predictions of the statistical-wood model at these two imposed pressures are marked by the solid dark-green and dashed light-green curves, respectively. Upper pane: the data on linear axes, lower pane: the data on log-log axes.
