Figure 9

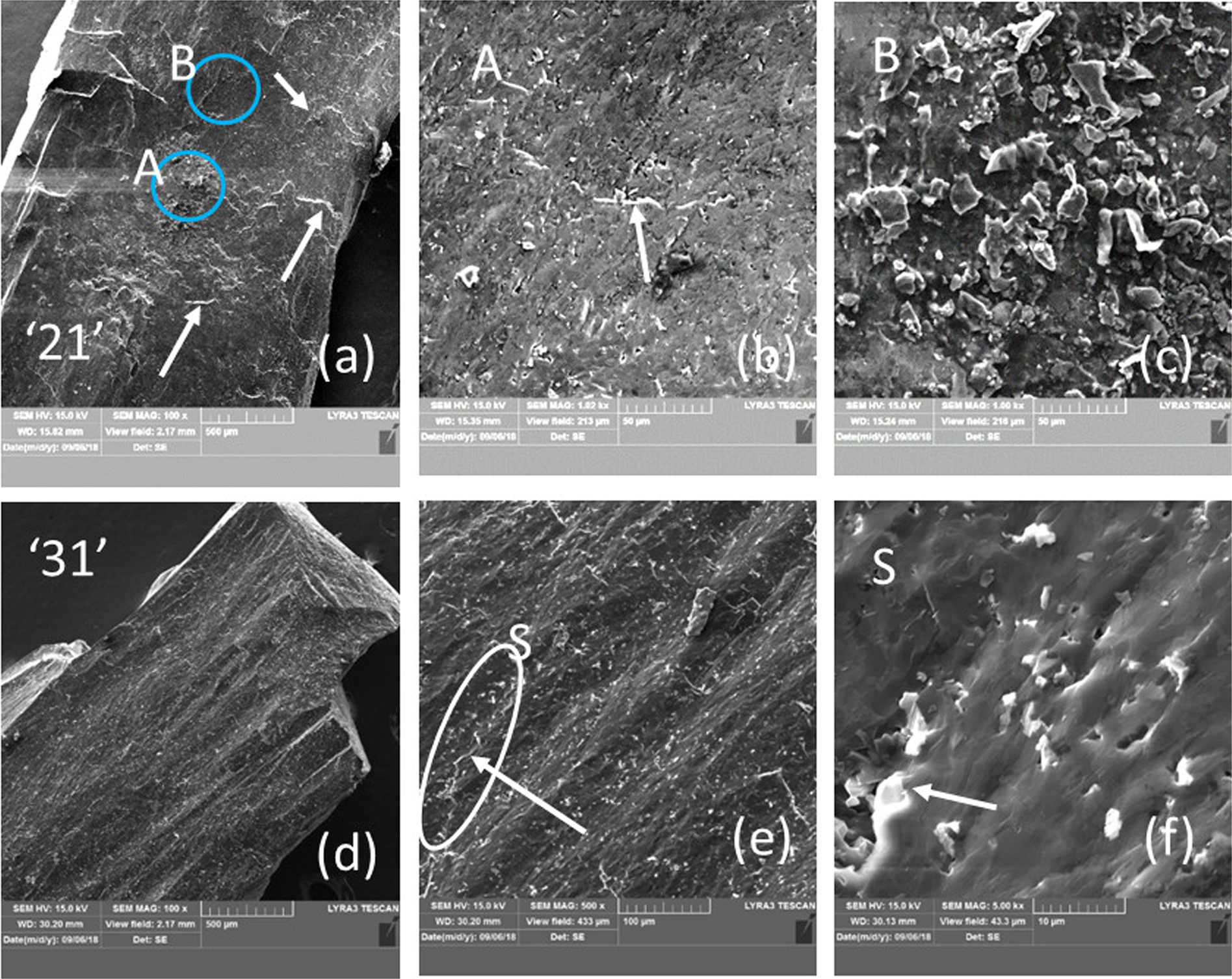

SEM micrographs of the surface of the pieces from samples ‘21’ and ‘31’ at different magnifications after the SHPB impact test. The details of regions A, B and S from (a,e) are presented in (b,c,f), respectively. The arrows indicate ‘steps’.
