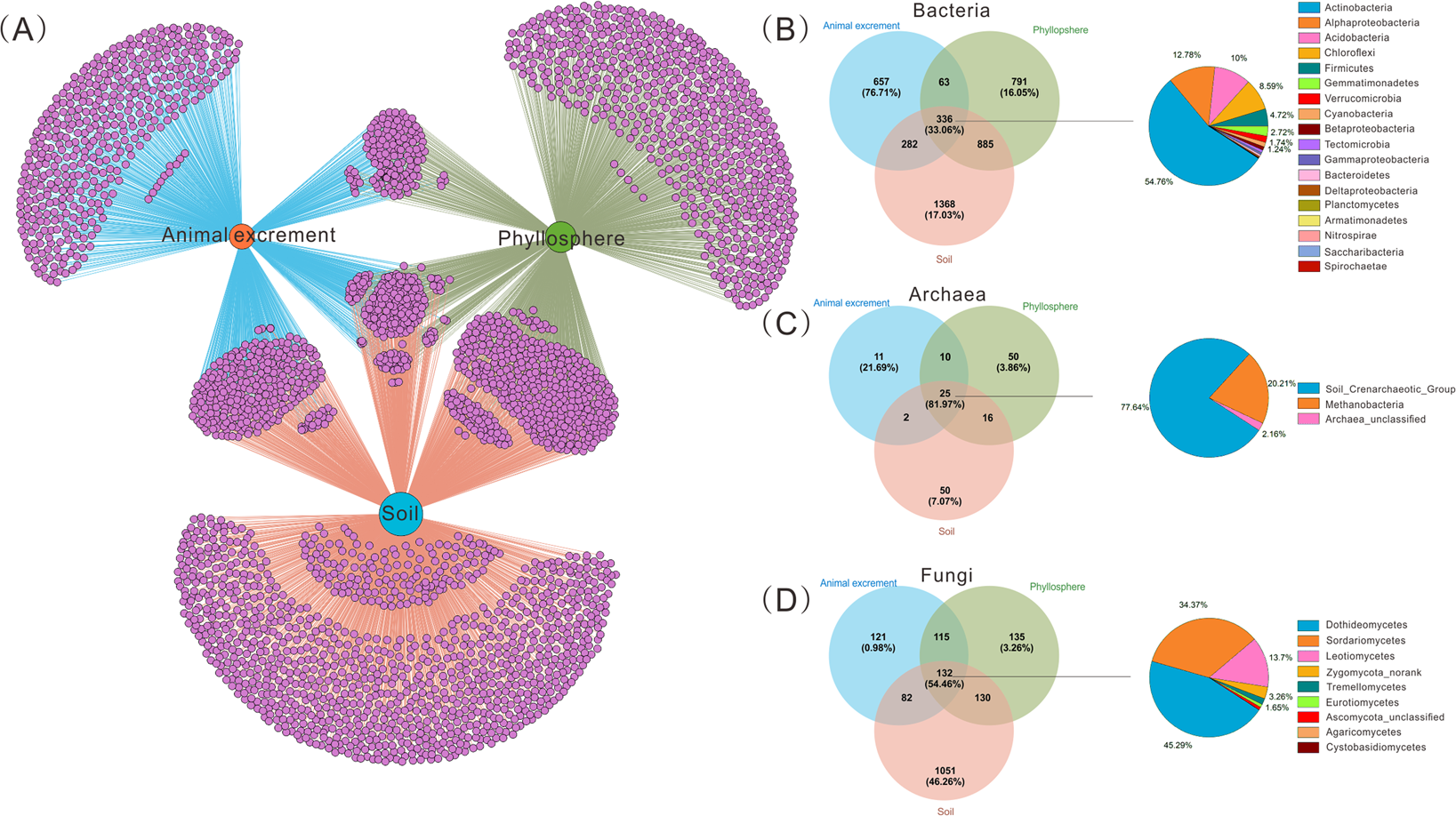

Operational taxonomic unit (OTU) network map (A) and Venn diagrams of shared and unique OTUs in three grassland habitats. (B–D) The proportions of sequences associated with the unique or shared OTUs in the total sequences obtained from each or all three habitats are shown in parentheses. The taxonomic data of shared OTUs in the three habitats are presented as the percent contribution of sequences in each microbial phylum or class relative to the total sequences. The levels of classification in the shared OTUs are the same as those used in Fig. 1.
