Figure 3

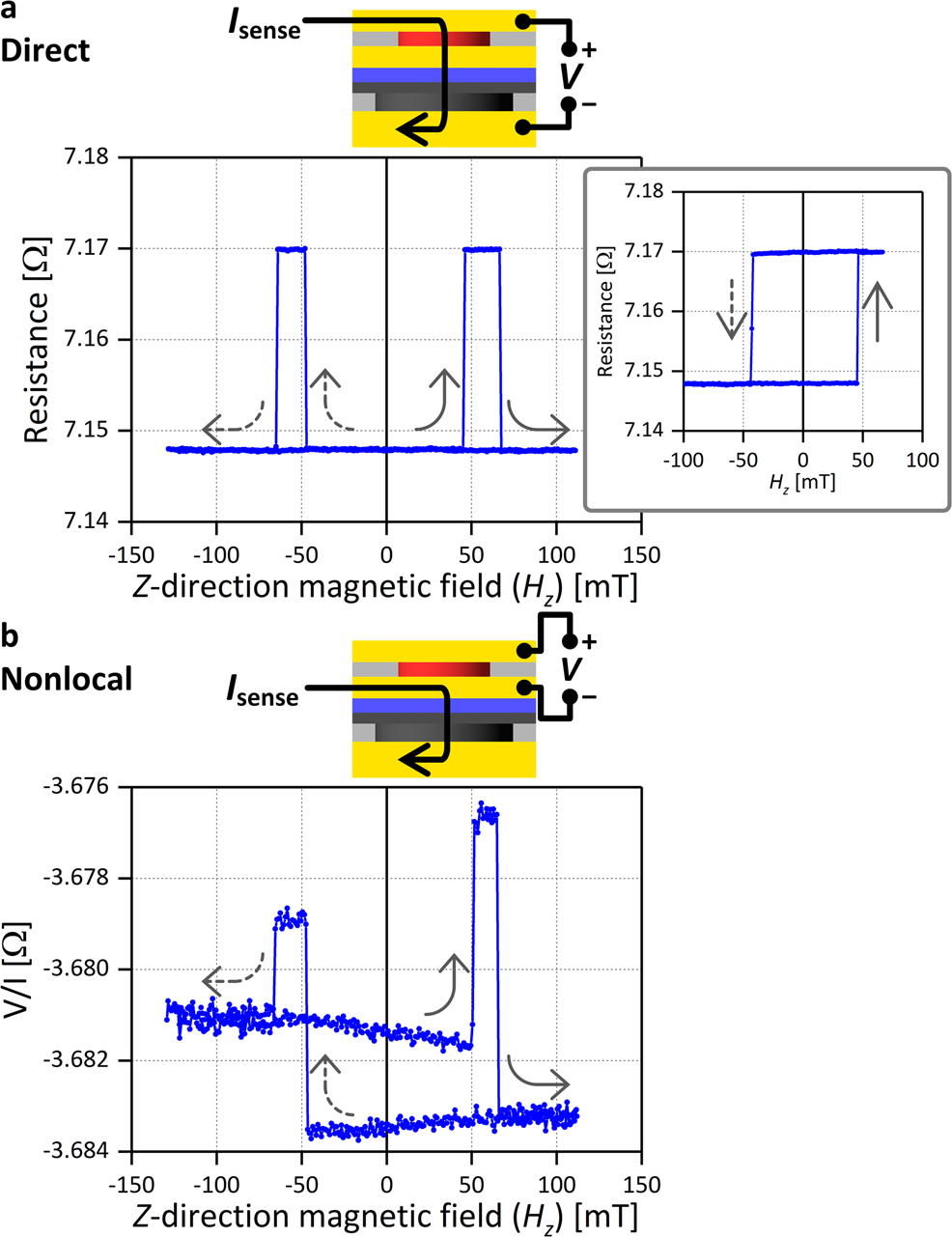

Transport measurement. (a) Resistance between BE and TE versus Hz. The inset shows the minor loop of free layer switching. (b) Nonlocal spin signal versus Hz. A schematic of the measurement setup is shown on top of each plot.
