Figure 12

From: Fabrication of ZnO nanoparticles adorned nitrogen-doped carbon balls and their application in photodegradation of organic dyes

Figure 12

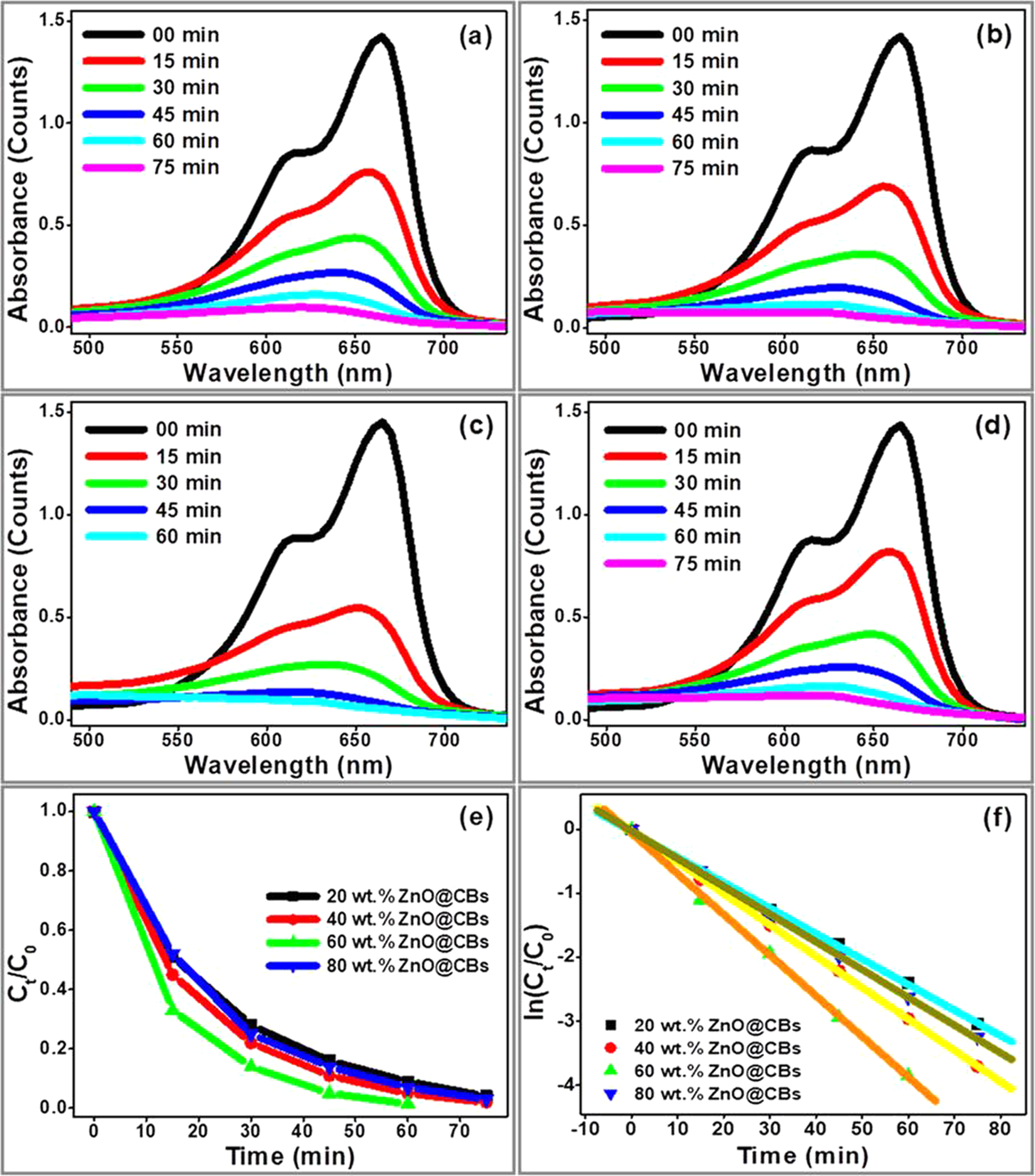

Degradation of MB dye in presence of (a) 20 wt.% ZnO@CBs (b) 40 wt.% ZnO@CBs (c) 60 wt.% ZnO@CBs and (d) 80 wt.% ZnO@CBs at different time intervals (min) under UV light (e) UV light photocatalytic performance of the different wt. % of ZnO@CBs in degradation of MB and (f) Reaction kinetics of degradation of MB over different wt.% of ZnO@CBs.
