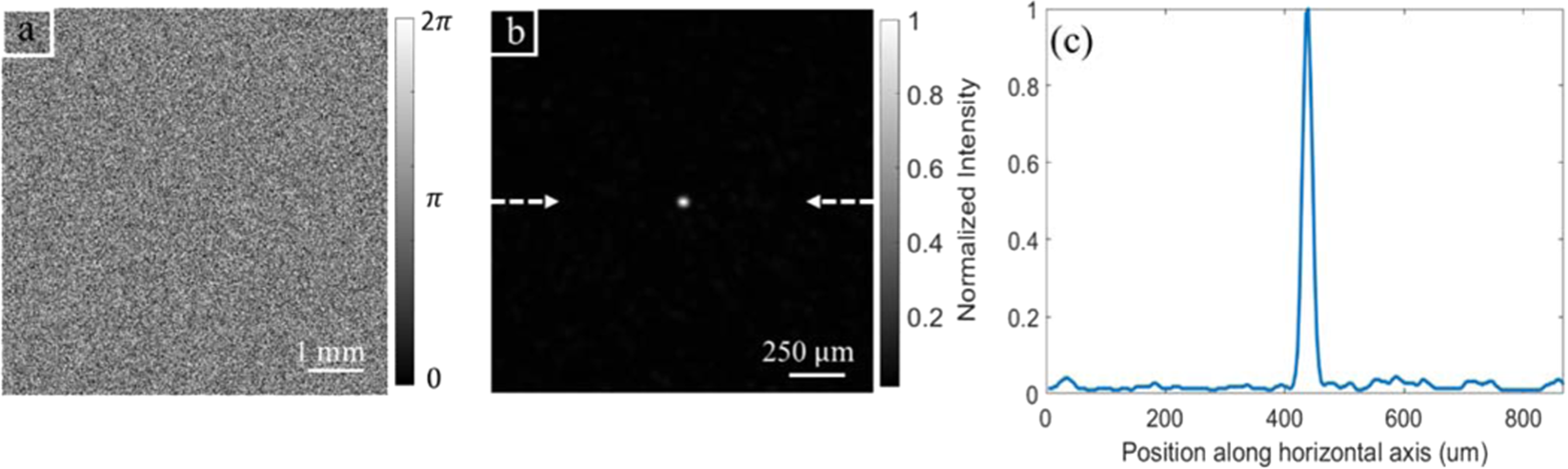

Figure 2

Shaping the incident beam wavefront to create a focus spot behind a scattering medium by GA. (a) Optimized phase pattern on SLM. (b) The optimized focus spot, the two arrows show the cross section line to measure the intensity. (c) Intensity profile along the horizontal line through the spot, presented by the two arrows in (b).
