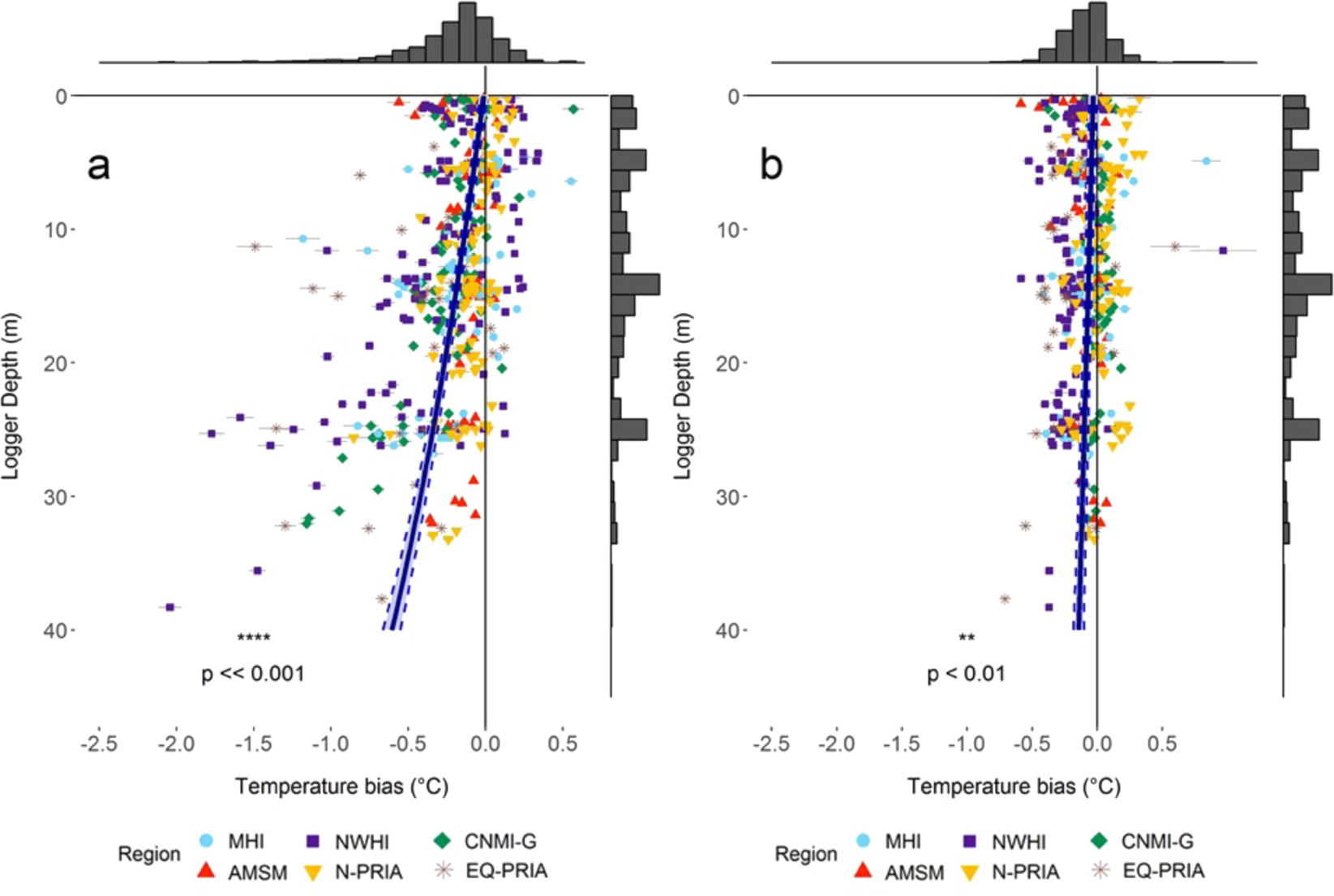

Figure 2
Nighttime temperature bias (in situ STR minus satellite SST) at depth for 457 sites from all six regions (n = 457). (a) Summer temperature bias during the climatologically warmest month as determined by the SST record (Fig. S8 and Table S1 shows details on statistics underlying data). (b) Winter temperature bias during the month that is six months offset from the summer climatologically warmest month (Fig. S9 and Table S2 shows details on statistics underlying data). In both seasons the blue line represents the linear mixed model regression and the dashed lines represent standard error of the model fit. The six regions are identified with different symbols and colors as defined in the legend. Both summer and winter temperature bias show significant association with depth (p ≪ 0.001 and p < 0.01, respectively). Histogram on top of plots refers to x-axis and represents the total count of sites associated to temperature bias bins. Histogram on right side of plots refers to y-axis and represents the total count of STRs associated to depth bins.
