Figure 3
From: Spin polarization in the phase diagram of a Li–Fe–S system

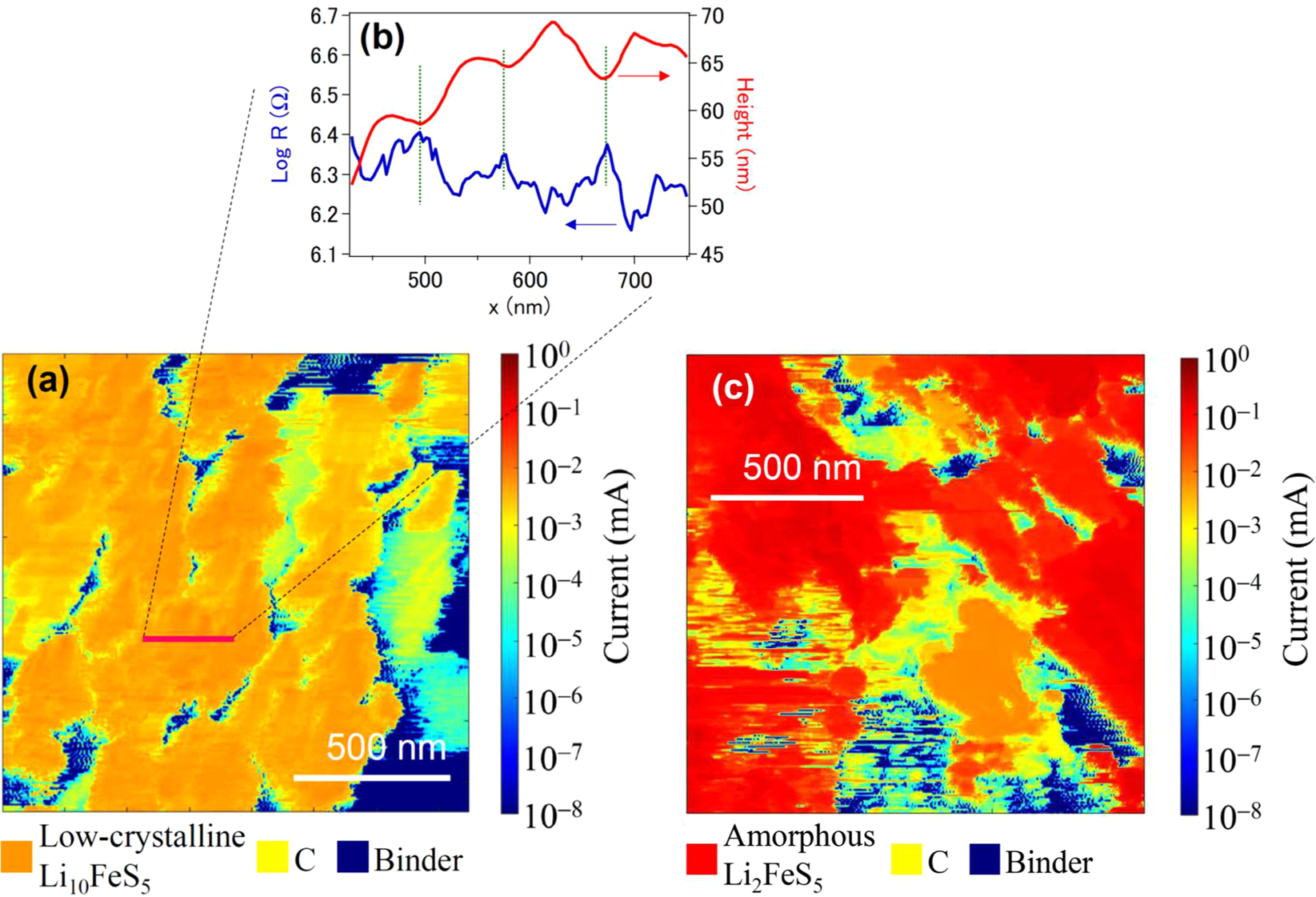

SSRM images of the samples after (a) lithiation and (c) delithiation. (b) Height and resistance profiles along the marked path. Scale bar: 500 nm.
