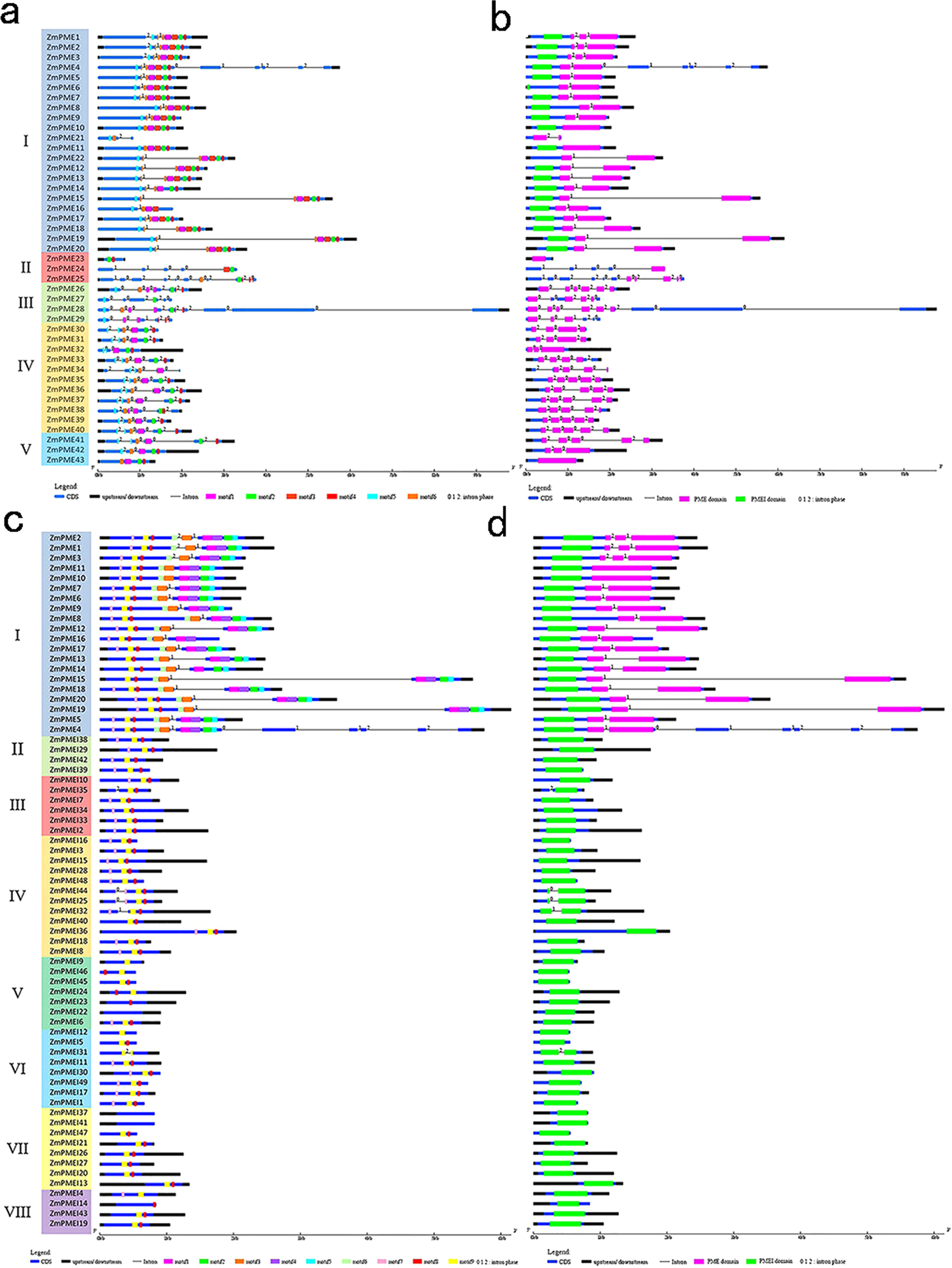

Conserved gene structures of the ZmPME/PMEI genes. (a,b) conserved motifs and domains of ZmPMEs. (c,d) conserved motifs and domains of ZmPMEIs. The gene structures of the ZmPME/PMEI genes was built using GSDS2.0 (http://gsds.cbi.pku.edu.cn/index.php) through both alignment of DNA obtained from MaizeGDB (http://www.maizegdb.org/), coding sequences (CDS) obtained from ORF finder (https://www.ncbi.nlm.nih.gov/orffinder/) and ZmPME/PMEI domains obtained from Pfam (http://pfam.janelia.org/) or SMART (http://smart.embl-heidelberg.de/) of the ZmPME/PMEI genes.
