Figure 2

From: A new primate from the late Eocene of Vietnam illuminates unexpected strepsirrhine diversity and evolution in Southeast Asia

Figure 2

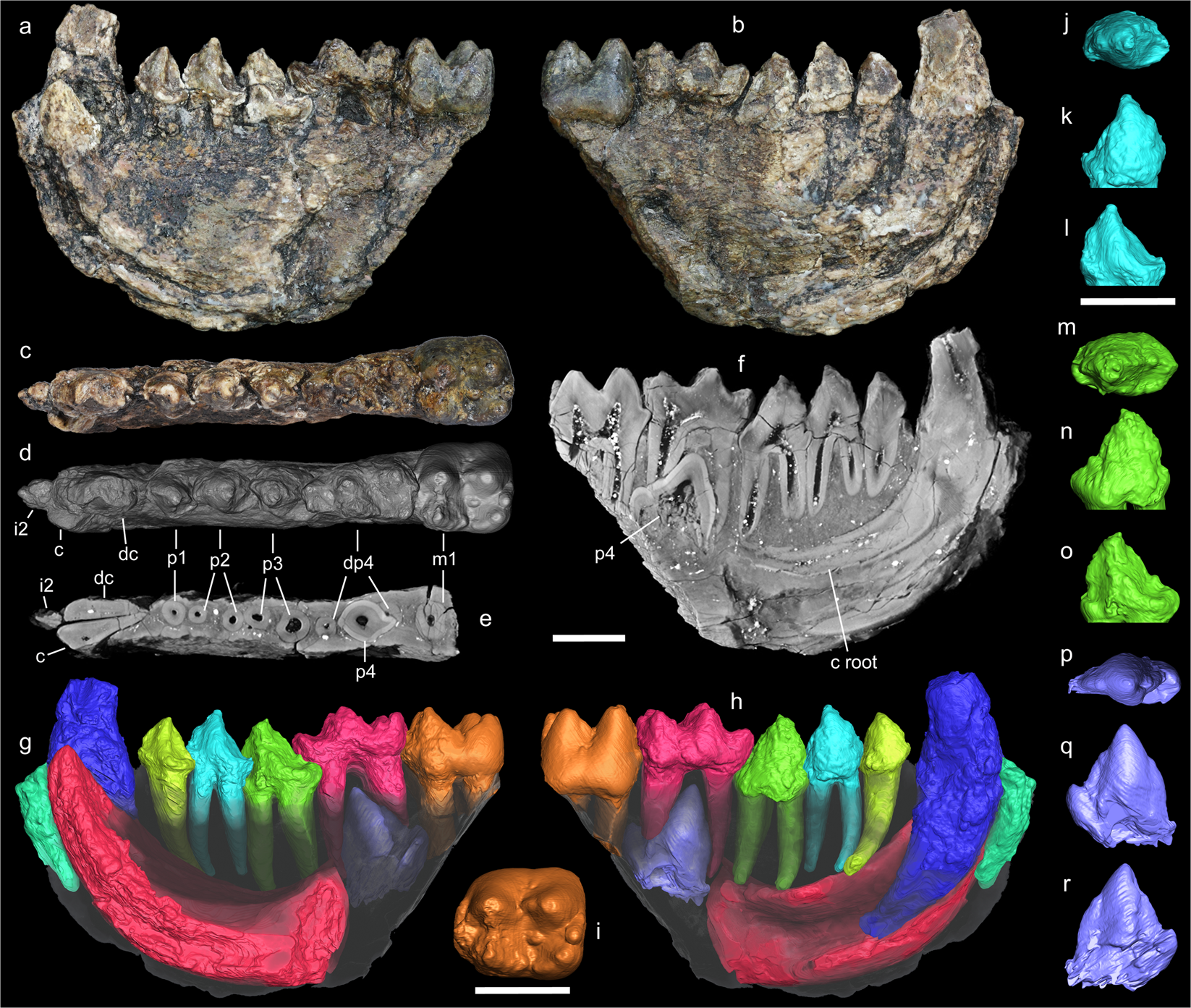

Holotype mandible of Anthradapis vietnamensis (ND-2015-12-7) represented in lingual view (A), buccal view (B), occlusal view (C), occlusal 3D rendering (D), horizontal virtual section showing roots (E), longitudinal virtual section showing roots and p4 germ (F), 3D rendering showing manually segmented crowns and/or roots of i2-m1 and p4 germ (G,H). I-R: 3D rendering of segmented teeth: m1 in occlusal view (I); p2 in occlusal (J), buccal (K) and lingual (L) views; p3 in occlusal (M), buccal (N) and lingual (O) views; virtually extracted p4 in occlusal (P), buccal (Q) and lingual (R) views. Scale bars: 5 mm. All virtual sections and 3D renderings were produced with Aviso 7.0 (Visualization Sciences Group, http://www.vsg3d.com/).
