Figure 8
From: Wind Power Persistence Characterized by Superstatistics

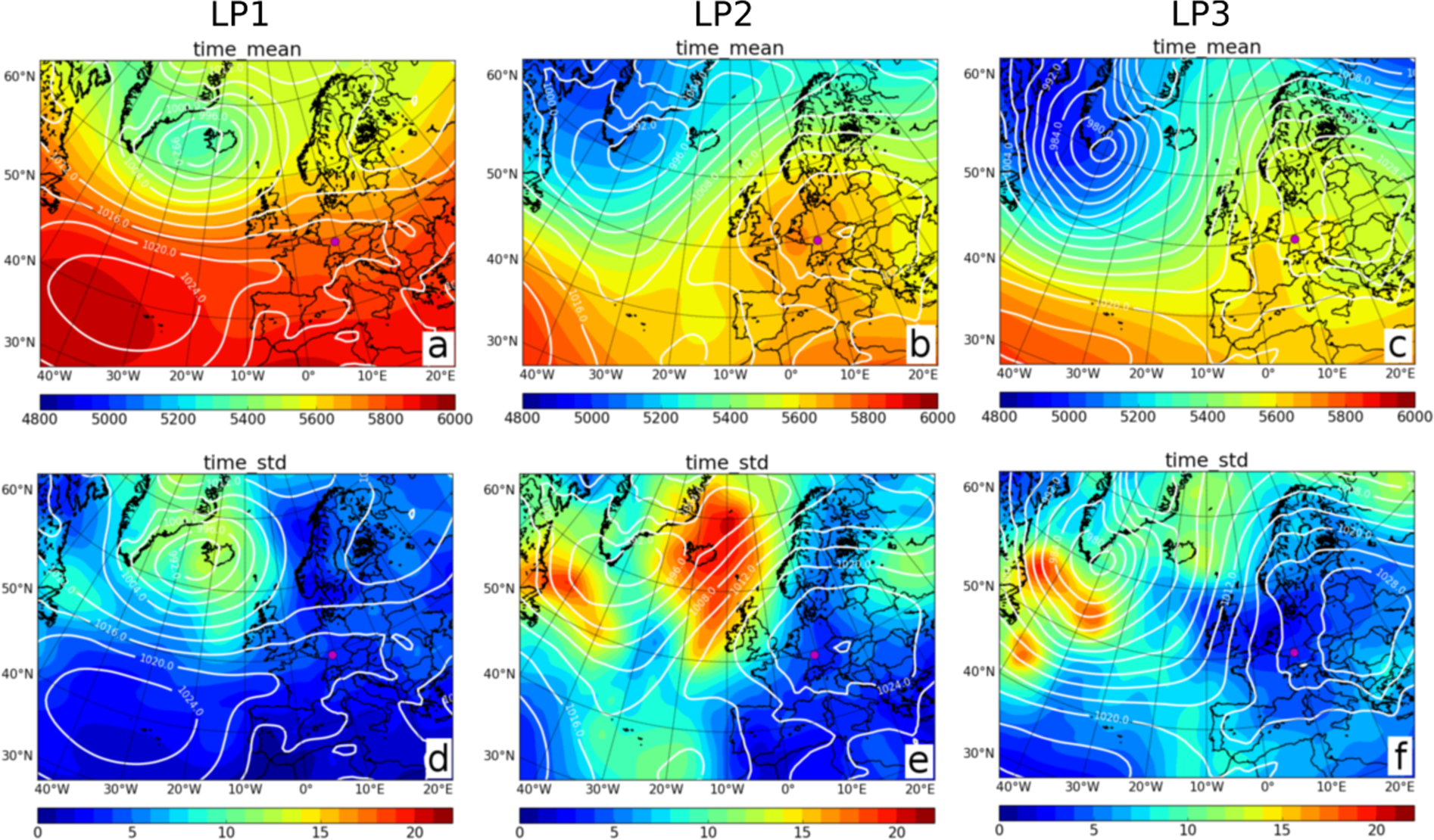

Low-wind periods are associated with different CWTs. The three columns illustrate the large scale atmospheric conditions as obtained by ERA-Interim during three extremely long low-wind periods: (a,d) LP1 in August 2008, (b,e) LP2 in November-December 1991 and (c,f) LP3 in December 1989-January 1990. The contours show the average MSLP in hPa while the shading shows the 500hPa geopotential height in meter (upper row, (a–c)), and the standard deviation of MSLP (lower row, (d,e)), respectively. The magenta dot shows the location of Harthaeuser Wald. Maps were created using Python 2.7.12: https://www.python.org/.
