Figure 2
From: Selection and functional identification of a synthetic partial ABA agonist, S7

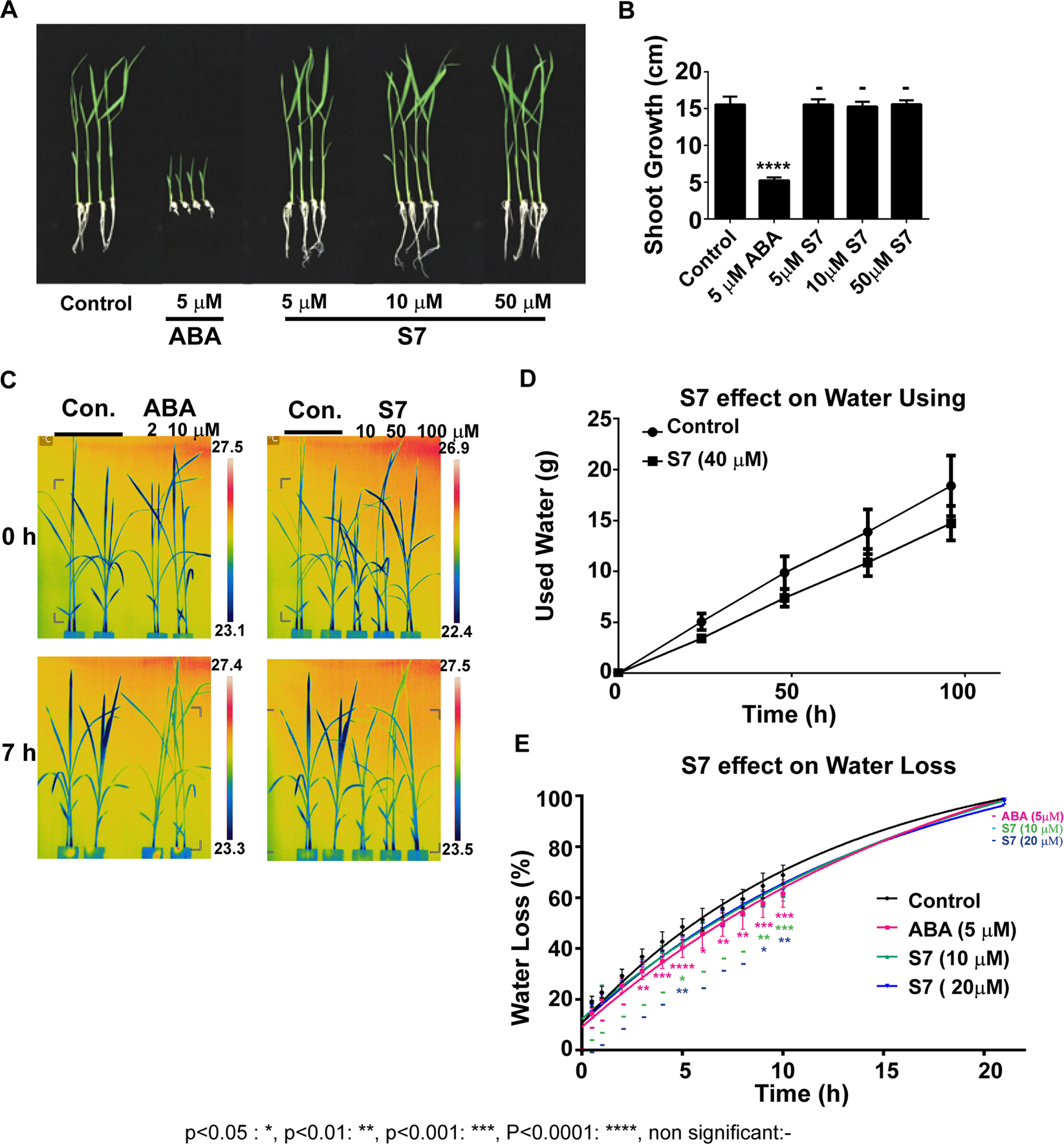

Physiological effects of S7 in rice. (A,B) Seedling growth assay using S7 or ABA treatments. For (B), n = 10, error bars indicate ± SD. Three independent replicates were performed. (C) Leaf temperatures of 4th-leaf-stage plants measured using infrared. (D) Water use by hydroponically grown plants. The water consumed by two plants per test tube was measured. n = 6, error bars are ± SD from three biological repeats. (E) Gravimetric assay of water lost from detached leaves. The curves were fitted with an exponential decay. The treated plants were compared with the control at each time point using a two-way ANOVA. n = 5, error bars are ± SD.
