Figure 5

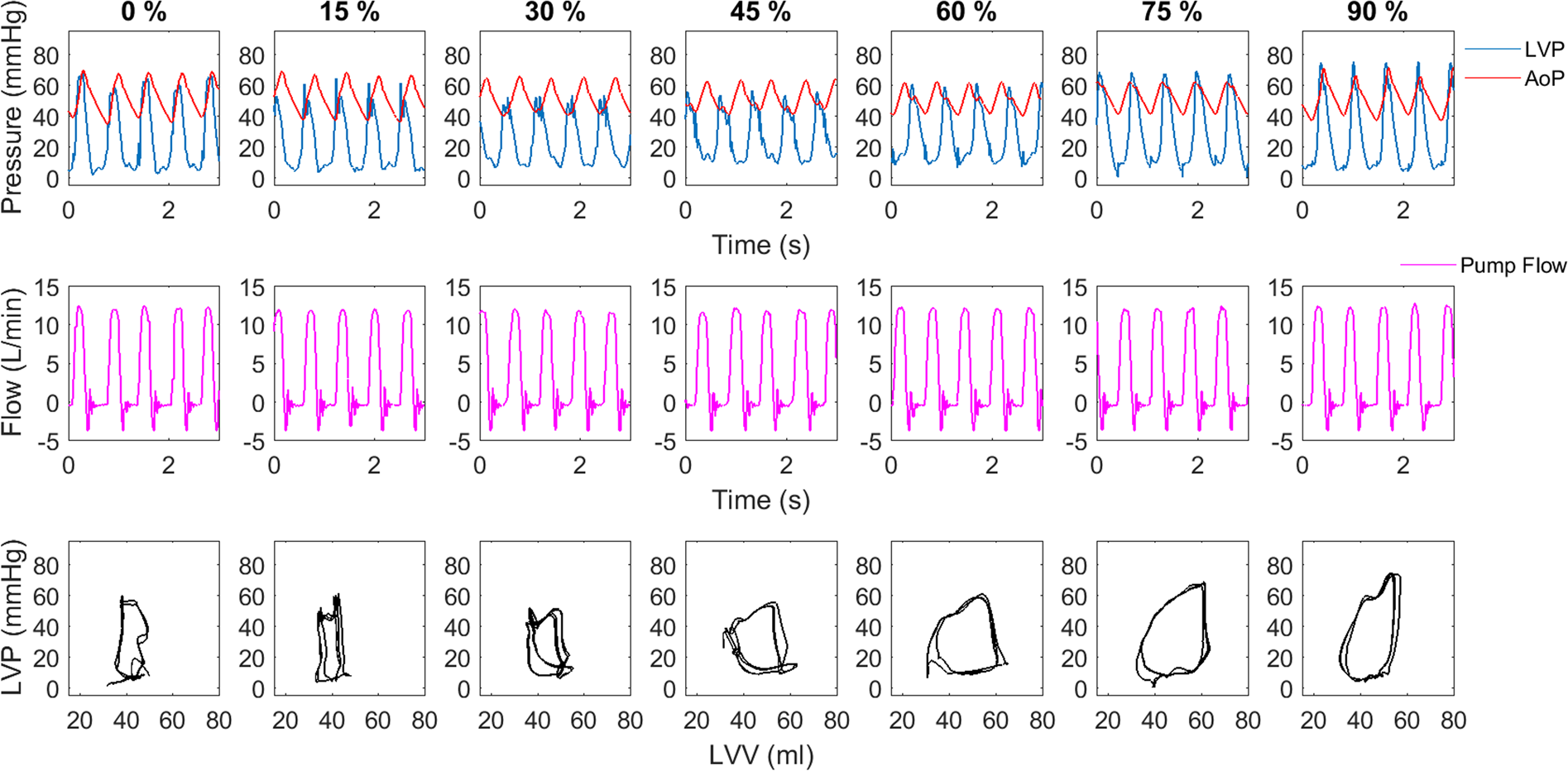

Typical time courses of pressure and flow at different phase delays (upper and mid panel) at a cardiac output of 3.4 L/min. In the lower panel the respective PV loops are depicted.
Figure 5 | Scientific Reports
Typical time courses of pressure and flow at different phase delays (upper and mid panel) at a cardiac output of 3.4 L/min. In the lower panel the respective PV loops are depicted.
