Figure 5
From: Optical decomposition of DNA gel and modification of object mobility on micrometre scale

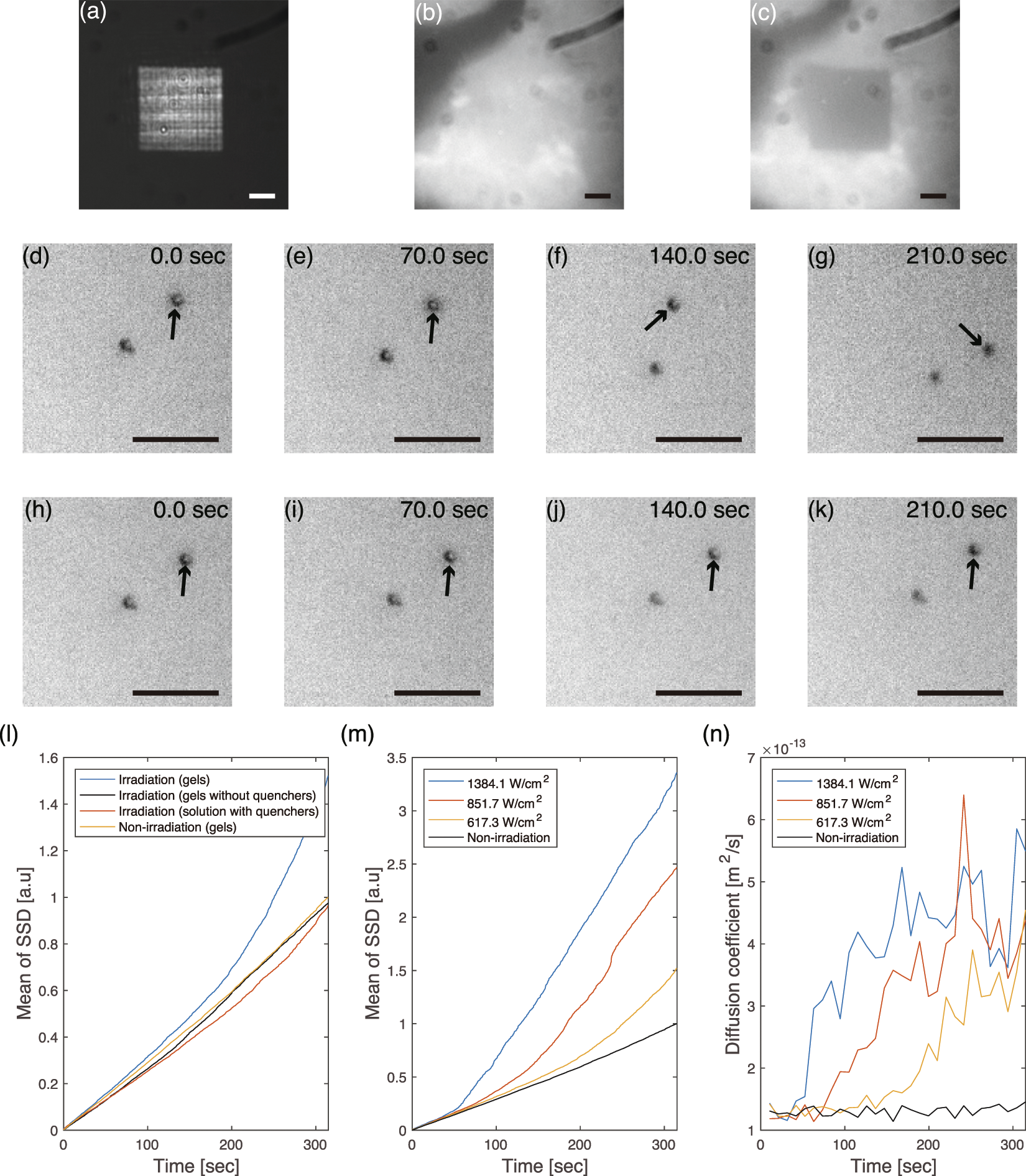

(a) Irradiation pattern. Fluorescence images (b) before and (c) after irradiation for 310.0 s. Time course of the bead’s movements (d–e) with irradiation and (h–k) without irradiation. The same PSB at each frame is indicated by black arrows. Scale bars indicate 10 μm. (l,m) The relationship between time and total square displacement of the PSBs. (n) Diffusion coefficient over time.
