Figure 6
From: Zebrafish structural development in Mueller-matrix scanning microscopy

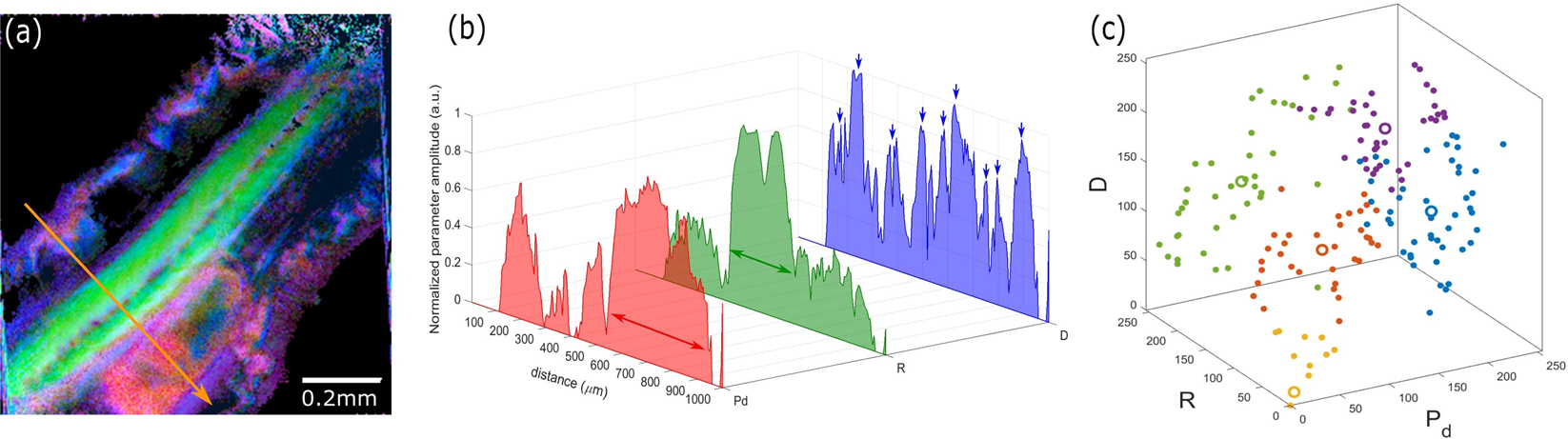

(a) Polarimetric merged images of the fixed zebrafish tail at 72hpf from Fig. 4 coded in depolarization index (red), retardance (green) and diattenuation (blue). (b) Merged normalized intensity profiles of the orange arrow in (a) from the three channels, i.e. depolarization index Pd (red), retardance R (green) and diattenuation D (blue). The green, red and blue arrows showed the estimated muscular, yolk sac and the membranes areas, respectively. (c) 3D-clustered pixels intensity distribution of the three main polarimetric parameters from Fig. 4(b),(c),(e).
