From: Dominant Heterogeneity of Upper and Lower Motor Neuron Degeneration to Motor Manifestation of Involved Region in Amyotrophic Lateral Sclerosis

Figure 3

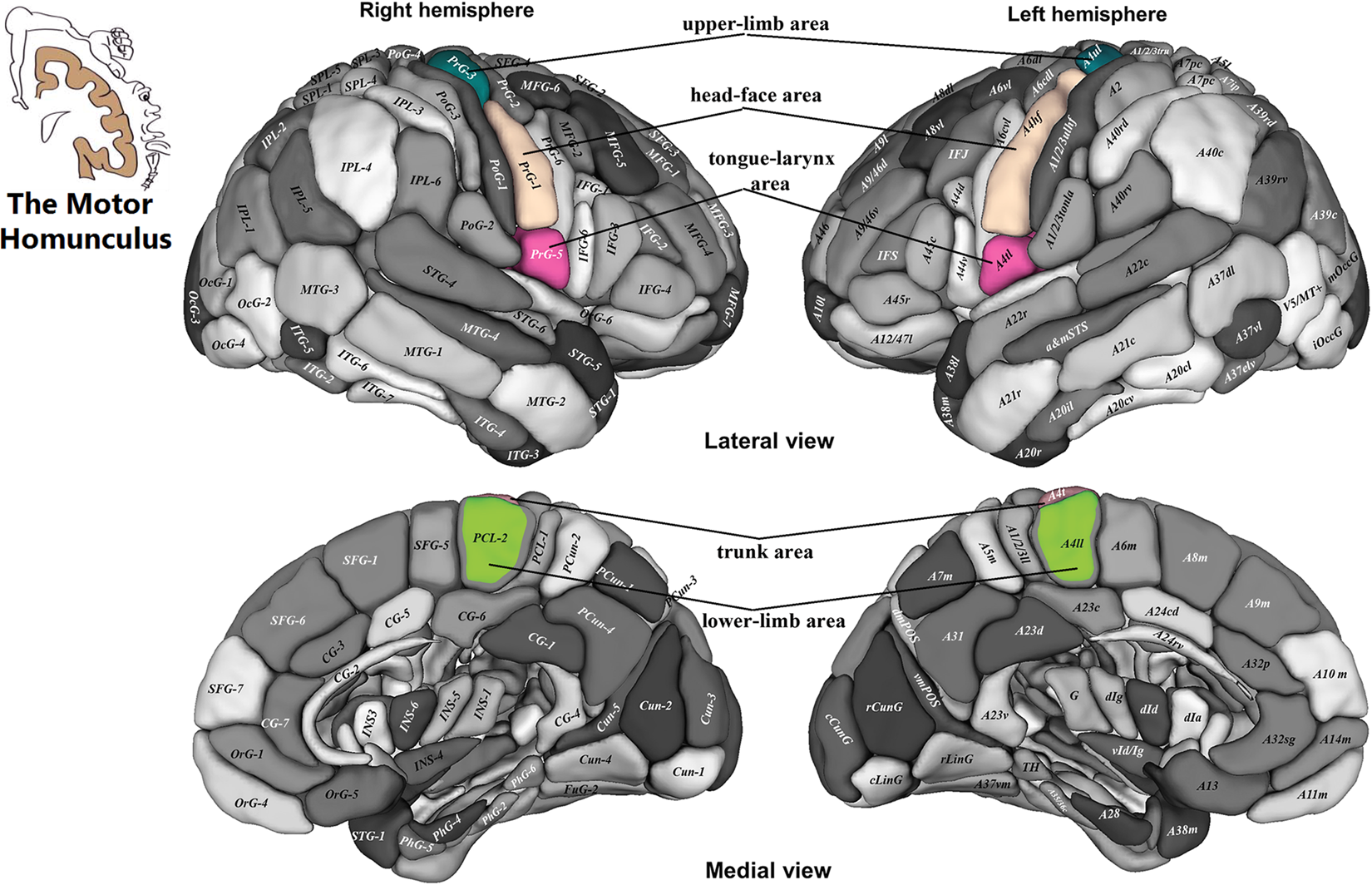

ROIs in the motor homunculus, the tongue-larynx area corresponding to the PrG5, the head-face area corresponding to PrG-1, the upper-limb area corresponding to PrG-3, the trunk area corresponding to PrG-4, and the lower-limb area corresponding to PCL-2. PrG: Precentral gyrus, PCL: Paracentral lobule Note: This figure is modified from part A and B in the Fig. 2 on Tianzi Jiang’s article. Modifications to the original figure including tongue-larynx, head-face, upper-limb, trunk, and lower-limb with the corresponding regions7.
