Figure 1 | Scientific Reports

Figure 1

From: Bleomycin hydrolase regulates the release of chemokines important for inflammation and wound healing by keratinocytes

Figure 1

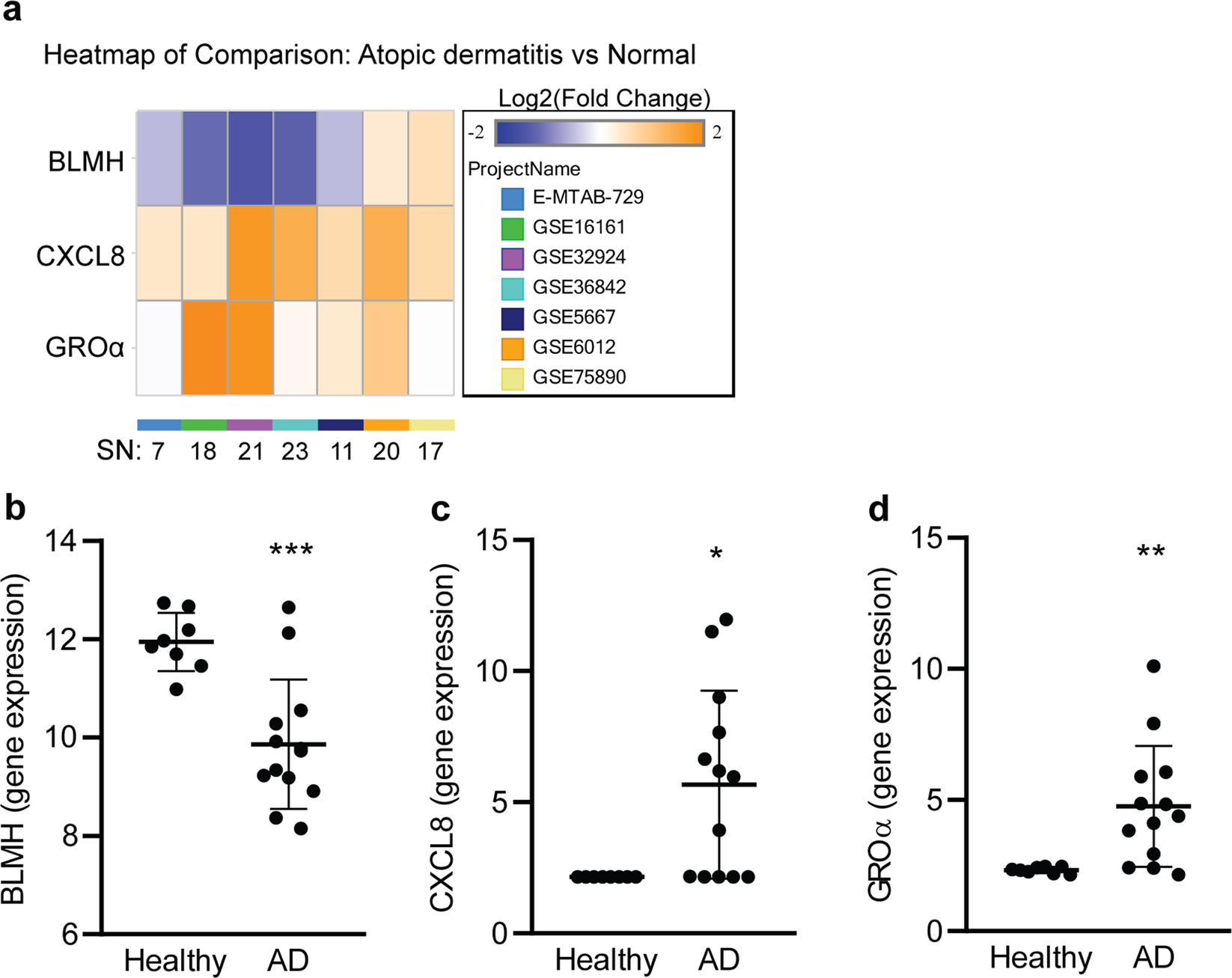

Expression of BLMH is downregulated in skin lesions from AD patients. (a) A genomic meta-analysis of gene expression of BLMH, CXCL8 and GROα in lesions from AD patients versus healthy individuals were conducted covering 7 cohorts with stated sample numbers (SN) of healthy individuals + AD patient samples. The Project named GSE32924 contained the largest number of AD patients and the gene expressions in patients versus healthy skin were compared in graphs (bd) (healthy n = 8, AD n = 13, unpaired two-tailed Student’s t-tests). All values represent individual experiments with mean ± standard deviation. Significant P-values are presented as *p < 0.05; **p < 0.01; ***p < 0.001 and ****p < 0.0001.
