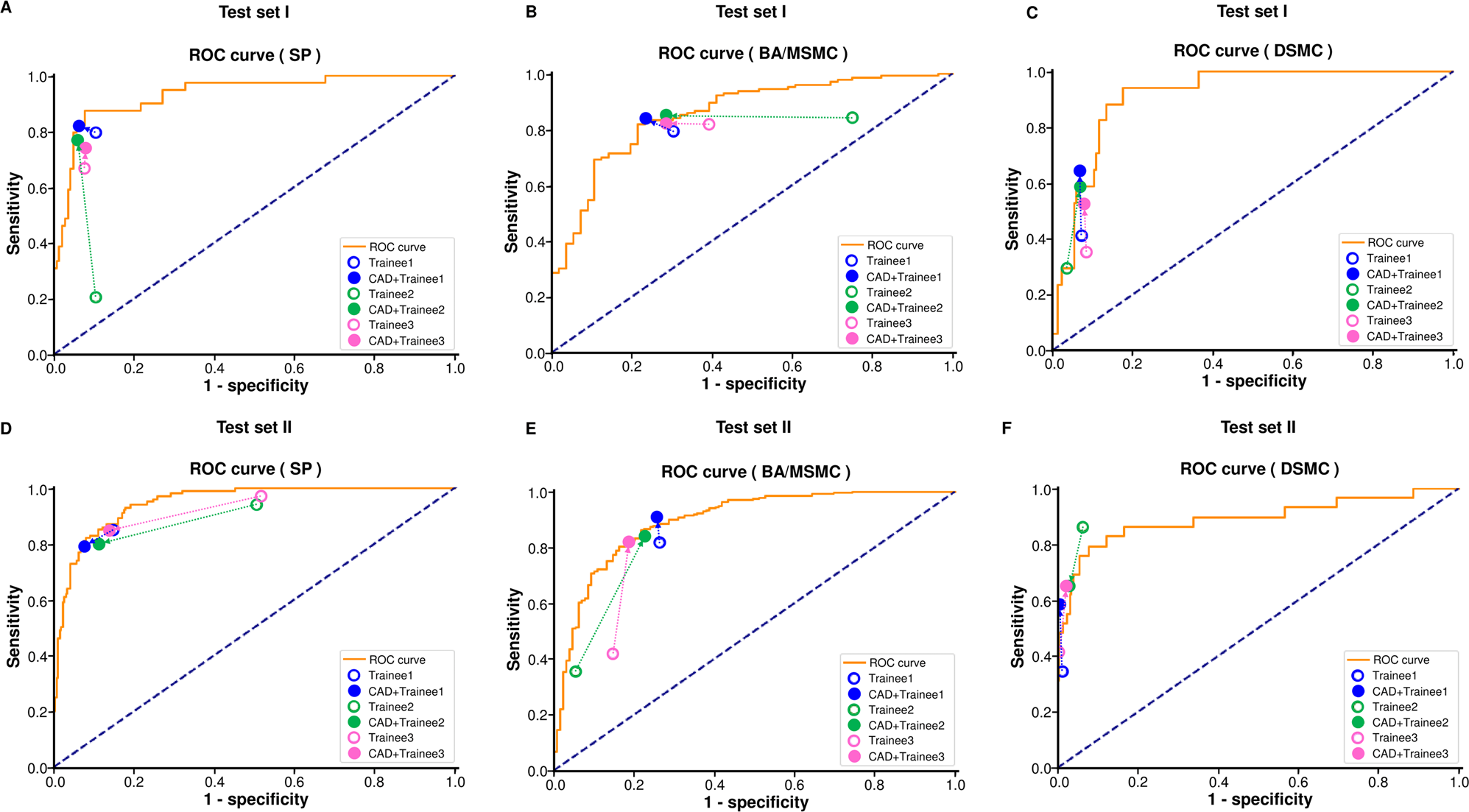

Figure 4
From: Endoscopic diagnosis and treatment planning for colorectal polyps using a deep-learning model
Improvement of the diagnostic performance of trainees with the assistance of the computer-aided diagnostic system (CAD). All empty circles representing trainees’ performance moved to solid circles representing the performance of the CAD+trainees at the left upper side or near the yellow curved line; this suggests that the performance of the CAD+trainees was superior to that of trainees and comparable to that of the CAD (yellow curved line). (A–C) Improved diagnostic performance of the CAD+trainee in the SP, BA/MSMC, and DSMC groups of test dataset I; (D–F) Improved diagnostic performance of the CAD+trainee in the SP, BA/MSMC, and DSMC groups of test dataset II. SP, serrated polyp; BA, benign conventional adenoma; MSMC, mucosal or superficial submucosal cancer; DSMC, deep submucosal cancer.
