Figure 1

From: Switching of multi-state magnetic structures via domain wall propagation triggered by spin-orbit torques

Figure 1

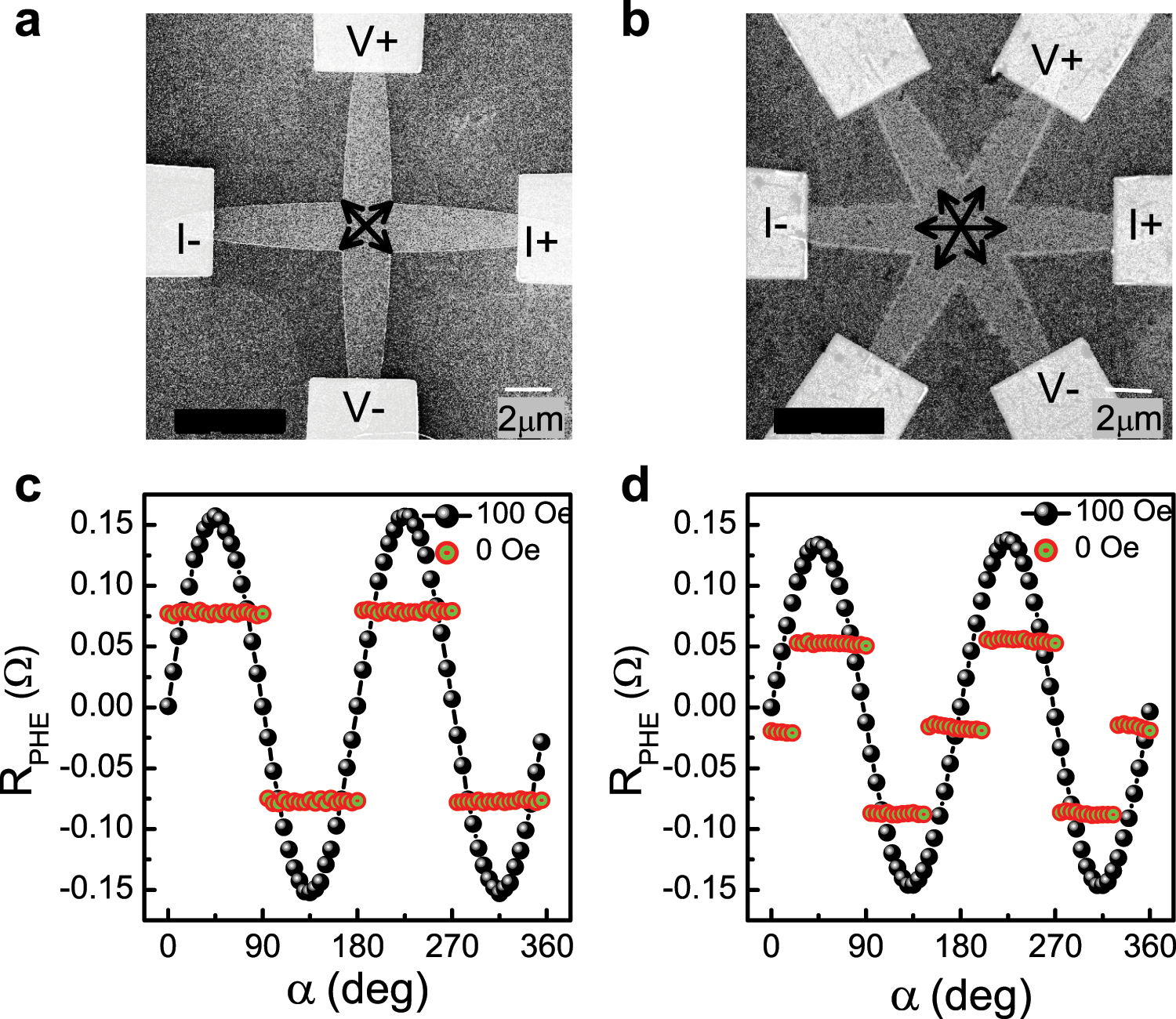

The structure and characterization of the devices. (a,b) Scanning electron microscopy images of Devices 1 and 2, respectively. Current and voltage pads are indicated. The direction of easy axes in the overlap area are shown by arrows. (c,d) RPHE measured with a field of 100 Oe (black) and after the field is switched off (red) as a function of the angle α between the field and the current for Devices 1 and 2, respectively.
