Figure 3
From: Time-Resolved Measurements of Turbulent Mixing in Shock-Driven Variable-Density Flows

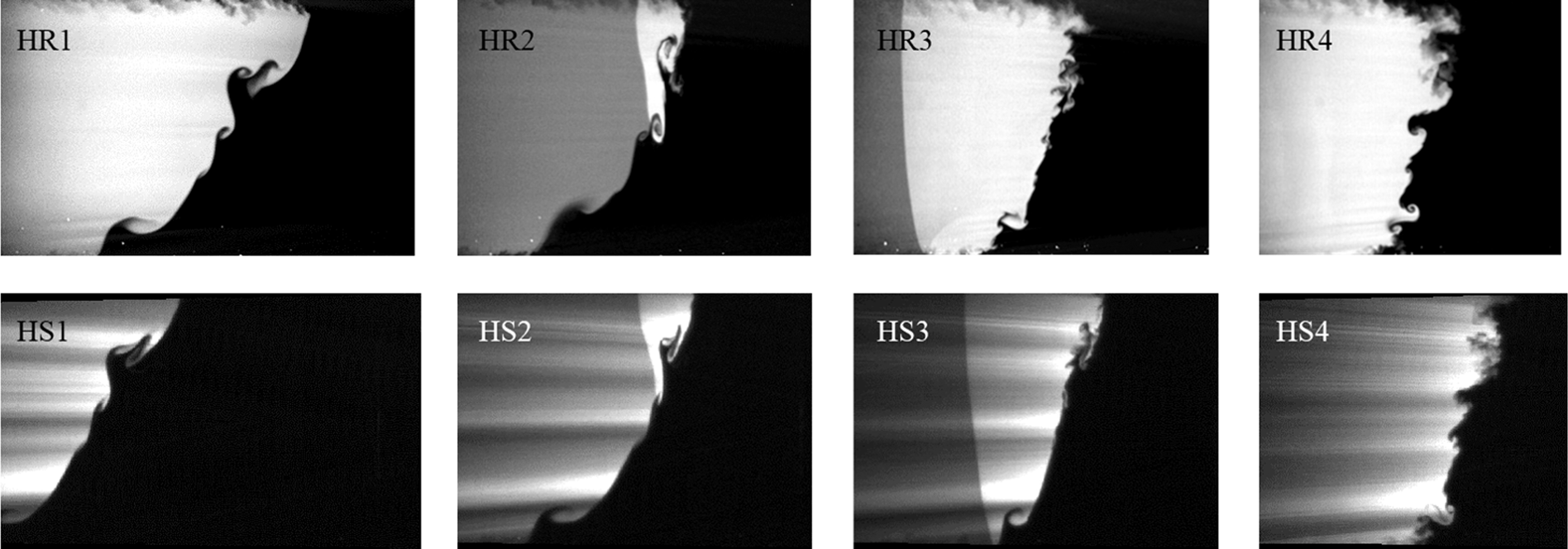

Qualitative comparison of interface images captured employing low-speed, high-resolution (HR, from Mohaghar, et al.33) PLIF and current high-speed moderate resolution (HS) PLIF are shown at four times (1−4, 5.0,5.2,5.3,5.5 ms after incident shock). The passage of reshock from right to left can be seen in images 2 and 3.
