Figure 7
From: Time-Resolved Measurements of Turbulent Mixing in Shock-Driven Variable-Density Flows

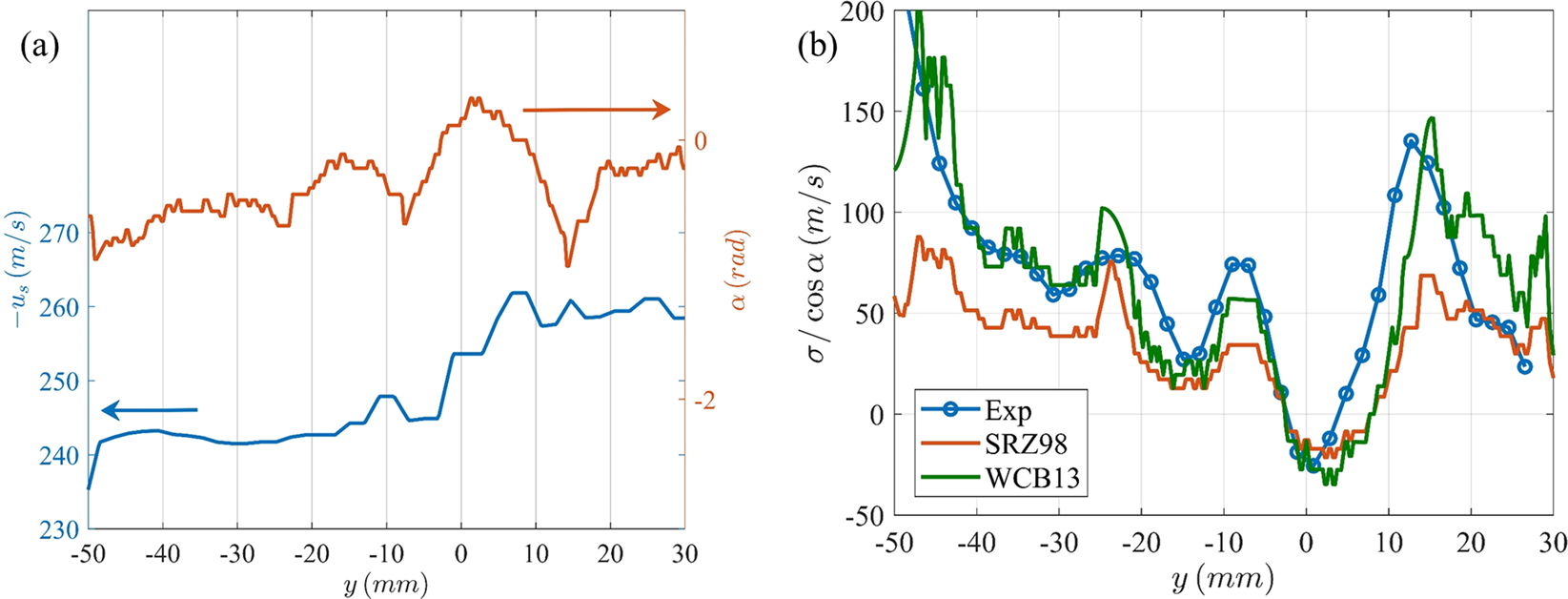

(a) The interface jump velocity and the misalignment of interface with reshock along the shock tube width, and (b) comparison of deposited circulation per unit shock-tube-width with the models of SRZ98 and WCB13.
