Figure 8
From: Time-Resolved Measurements of Turbulent Mixing in Shock-Driven Variable-Density Flows

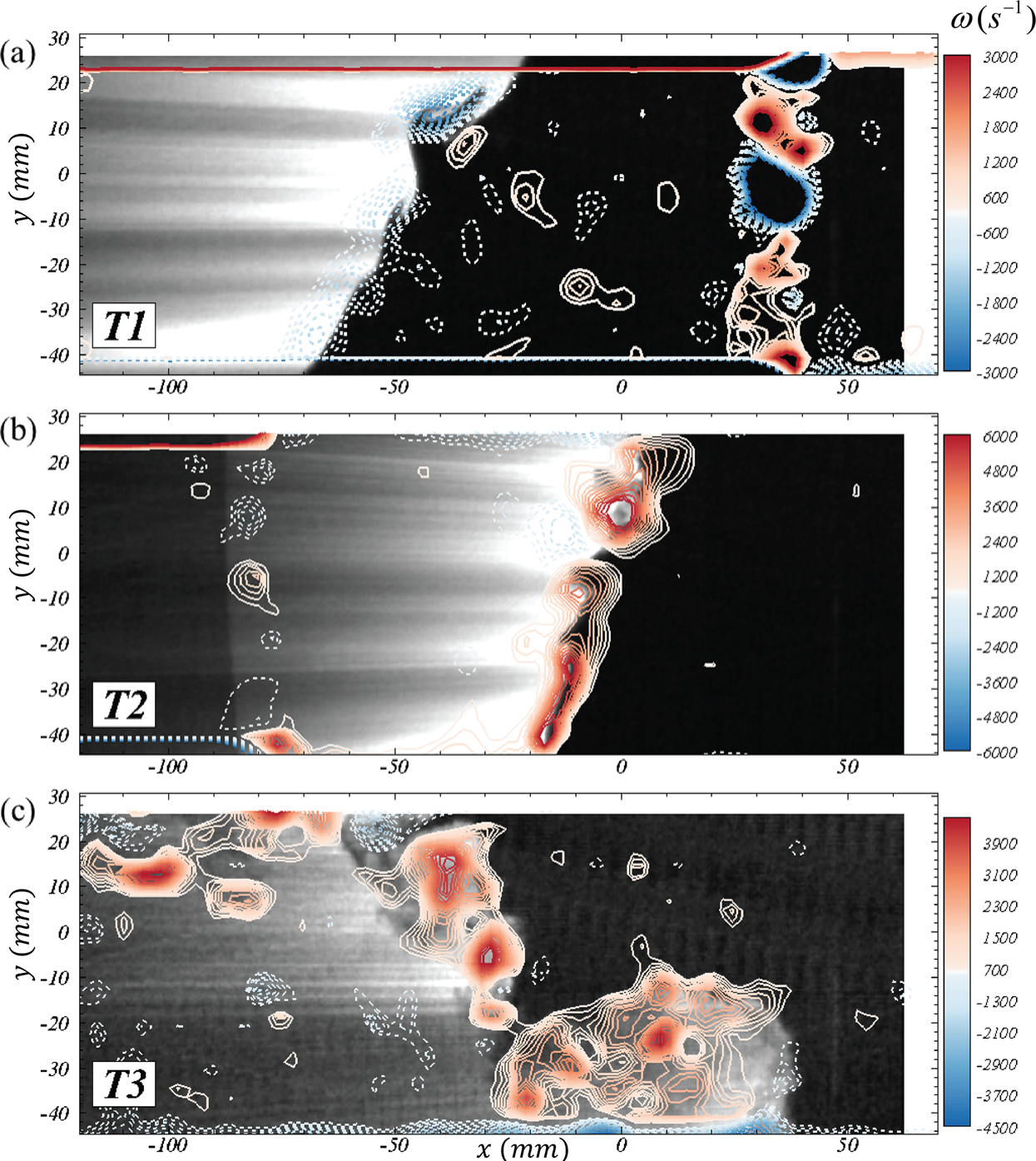

The vorticity-dominanted-mixing characteristics of RMI shown via contours of vorticity (ω) and corrected PLIF intensities (IN). (a–c) correspond to same times T1–T3 described in Fig. 4. The mixing activity of the gasses is concentrated as pockets of strong vorticity (in s−1). See Supplementary video S3 for the full evolution in W3.
