Figure 2 | Scientific Reports

Figure 2

From: Added value recyclability of glass fiber waste as photo-oxidation catalyst for toxic cytostatic micropollutants

Figure 2

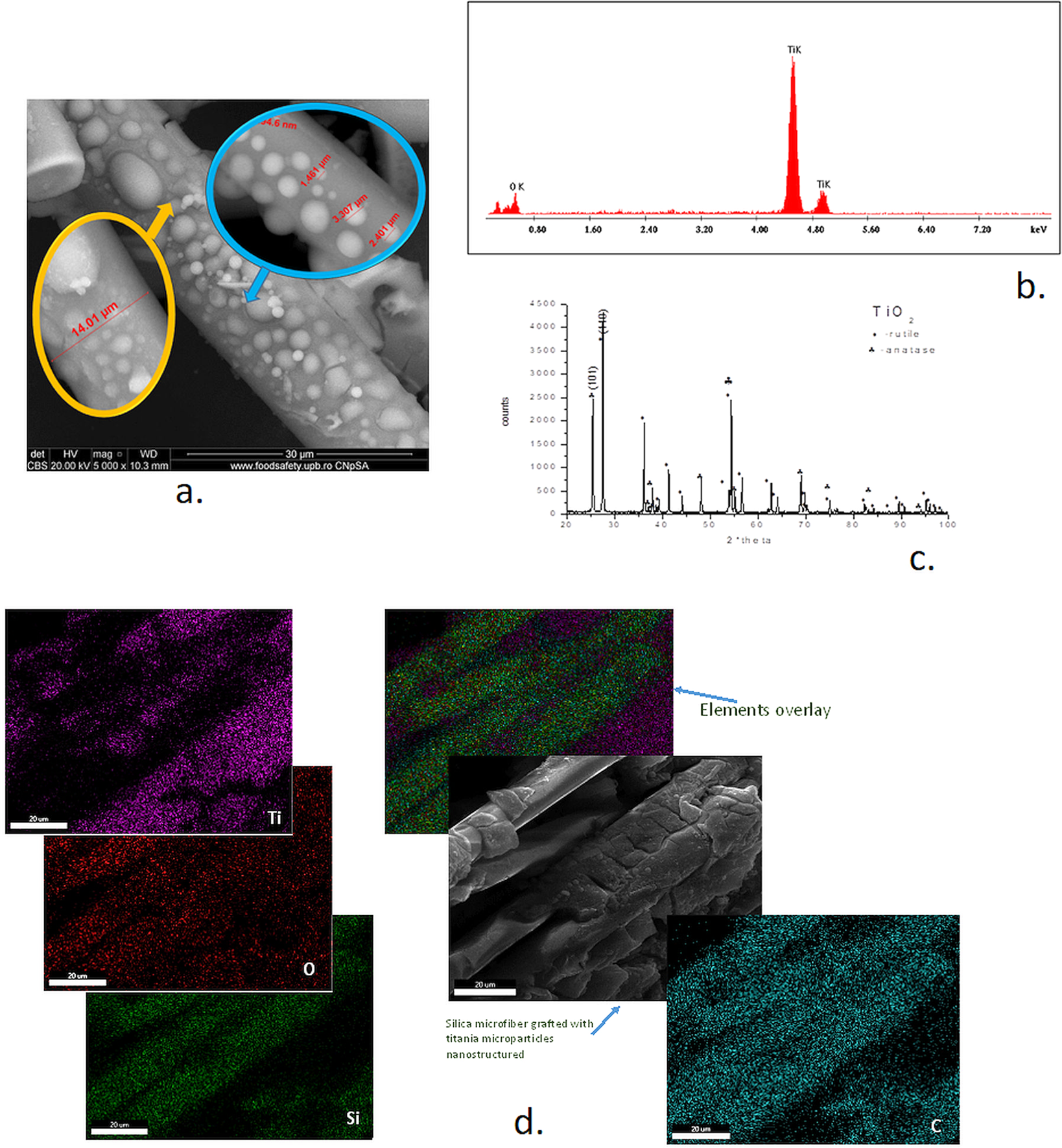

Structural and morphological characteristics of silica microfibrils grafted with titanium dioxide. (a) SEM image for dimensional analysis of the titanium dioxide grafted on silica microfibers; (b) EDX analysis of the titanium dioxide particles grafted on the silica microfibres; (c) XRD analysis of TiO2 nanoparticles covering the silica microfibers; (d) Elemental mapping for the silica microfiber decorated with TiO2.
