Figure 2
From: Regulatory Role of PlaR (YiaJ) for Plant Utilization in Escherichia coli K-12

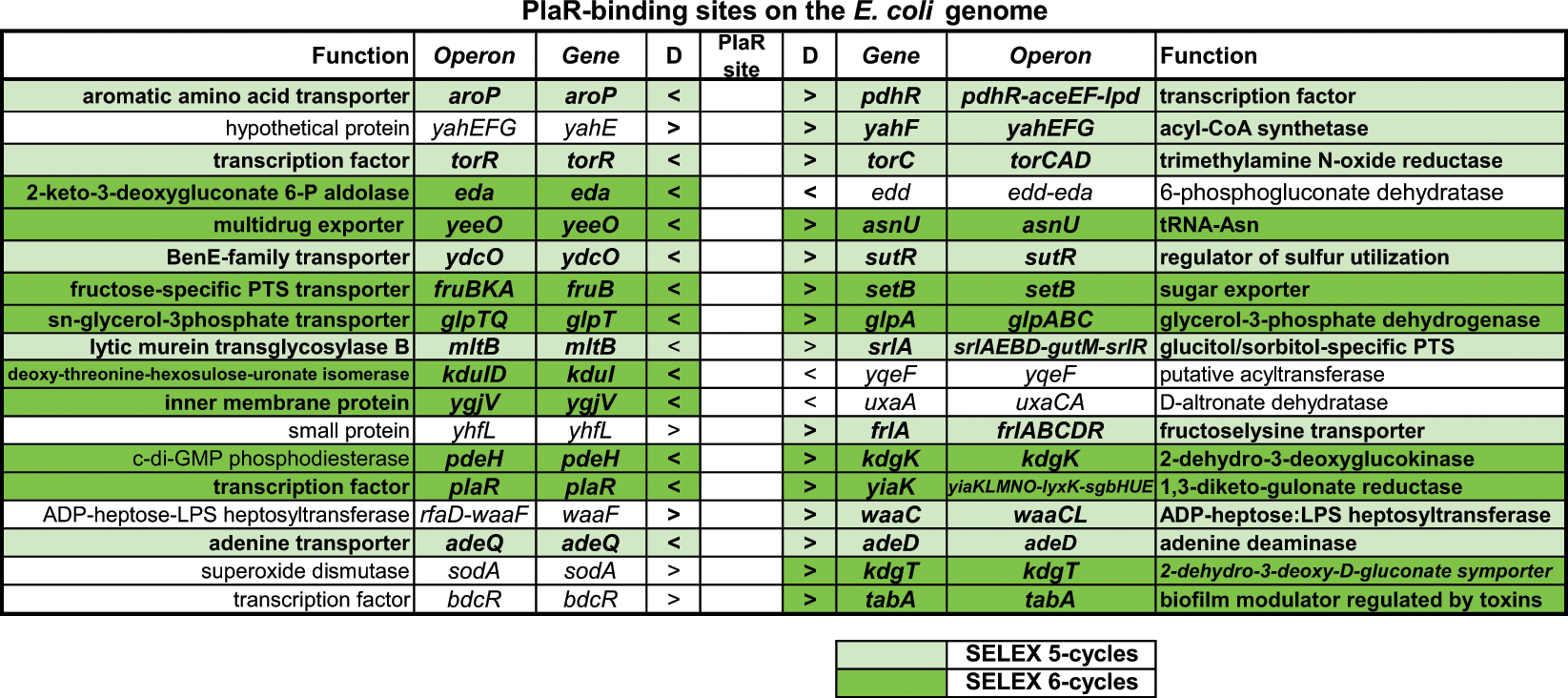

PlaR-binding sites on the E. coli genome were identified by using gSELEX-chip (see Fig. 1 for the gSELEX pattern). Possible regulation targets of PlaR are shown in bold, of which identified SELEX 5-cycles are shown under pale and dark green background, and SELEX 6-cycles are shown under dark green background.
