Figure 5
From: 3D-printing process design of lattice compressor impeller based on residual stress and deformation

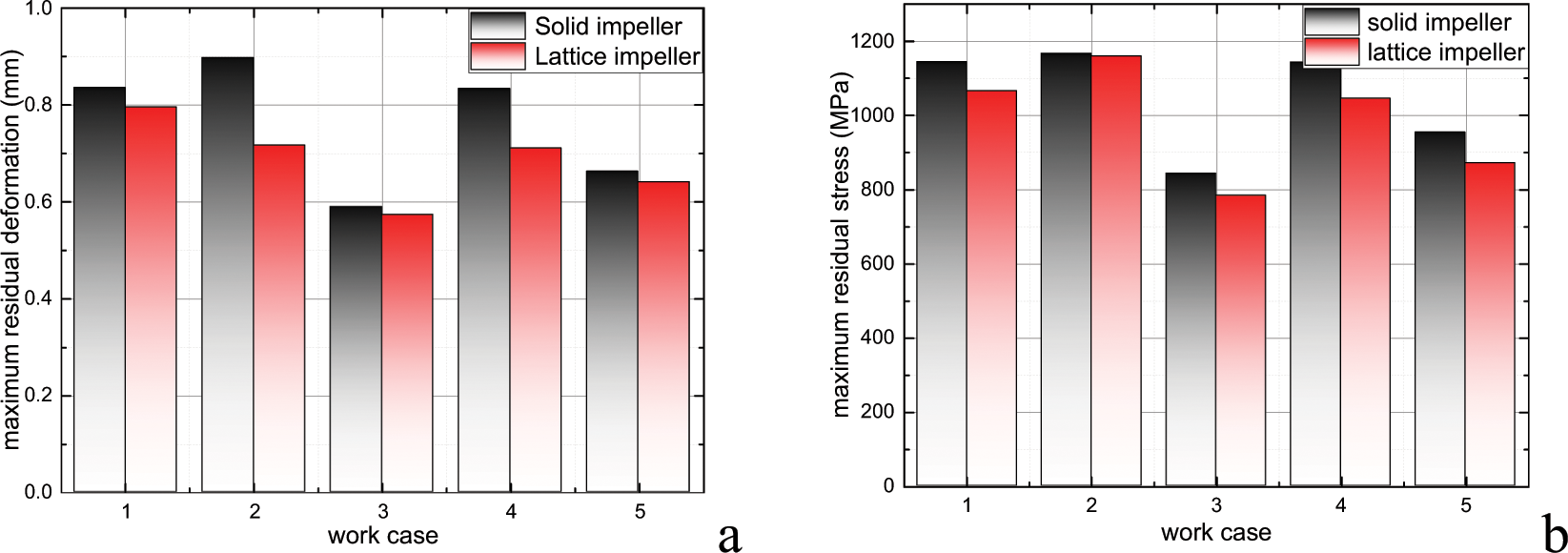

Maximum residual deformation and maximum residual stress of impeller at different work case (after removal of base plate and support)|| (a) Maximum residual deformation at different work case; (b) Maximum residual stress at different work case.
