Figure 3
From: Metal–organic framework–derived Ni@C and NiO@C as anode catalysts for urea fuel cells

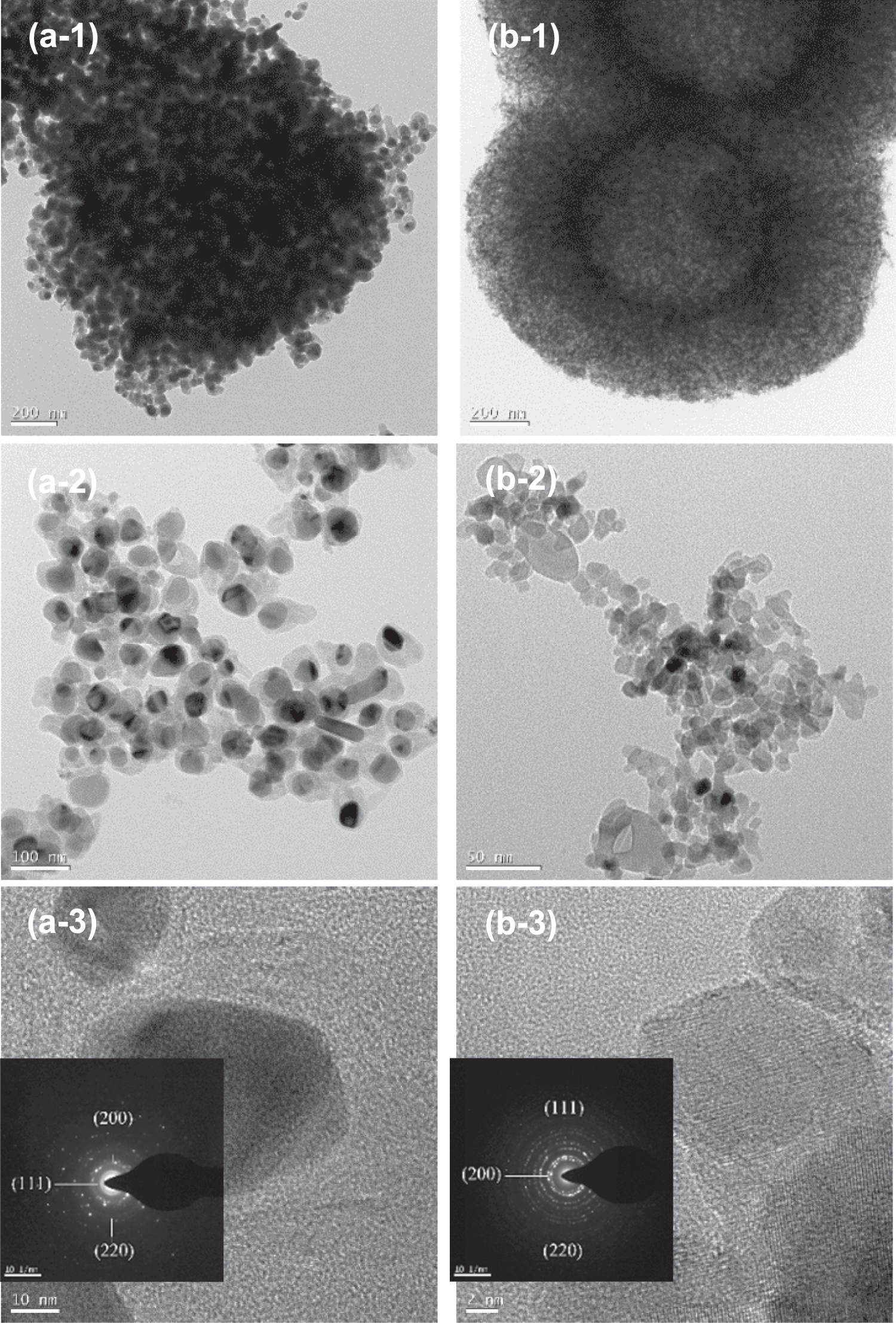

TEM (1, 2) and HRTEM (3) images of Ni@C (a) and NiO@C (b). Insets show SAED pattern.
Figure 3 | Scientific Reports
From: Metal–organic framework–derived Ni@C and NiO@C as anode catalysts for urea fuel cells
TEM (1, 2) and HRTEM (3) images of Ni@C (a) and NiO@C (b). Insets show SAED pattern.
