Figure 2
From: Climate change or irrigated agriculture – what drives the water level decline of Lake Urmia

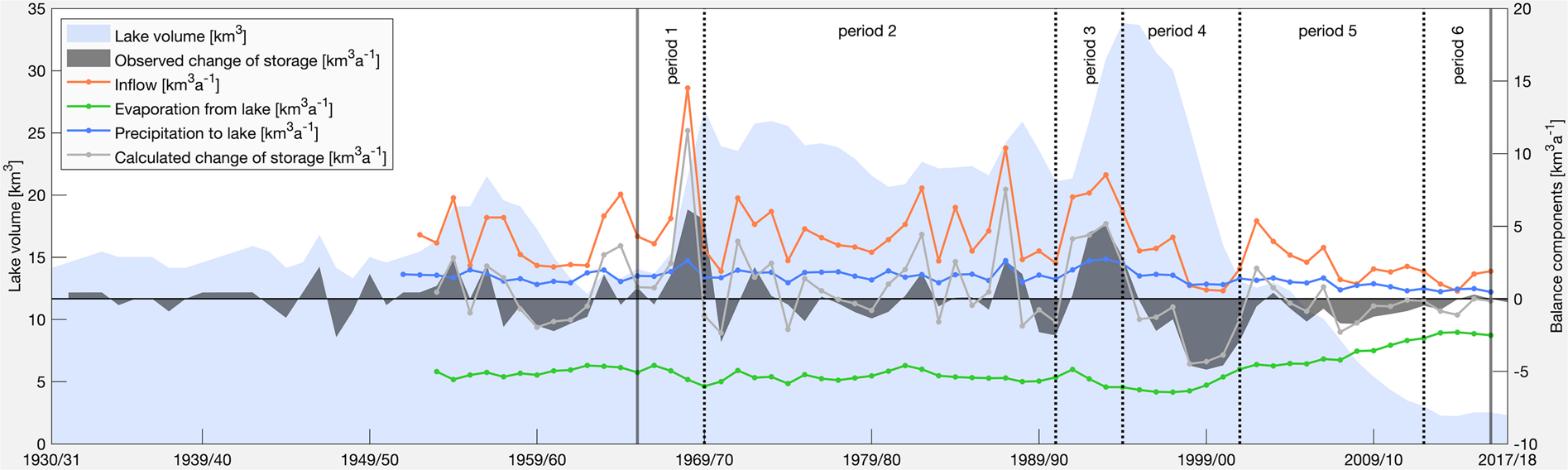

Water balance of Lake Urmia. Temporal evolution of Lake Urmia’s water balance components (seasonal sums) and observed lake volume (seasonal average). A hydrological season in the Lake Urmia basin extends from October to September of the following year. (Plot is generated using MATLAB R2019b, www.mathworks.com).
