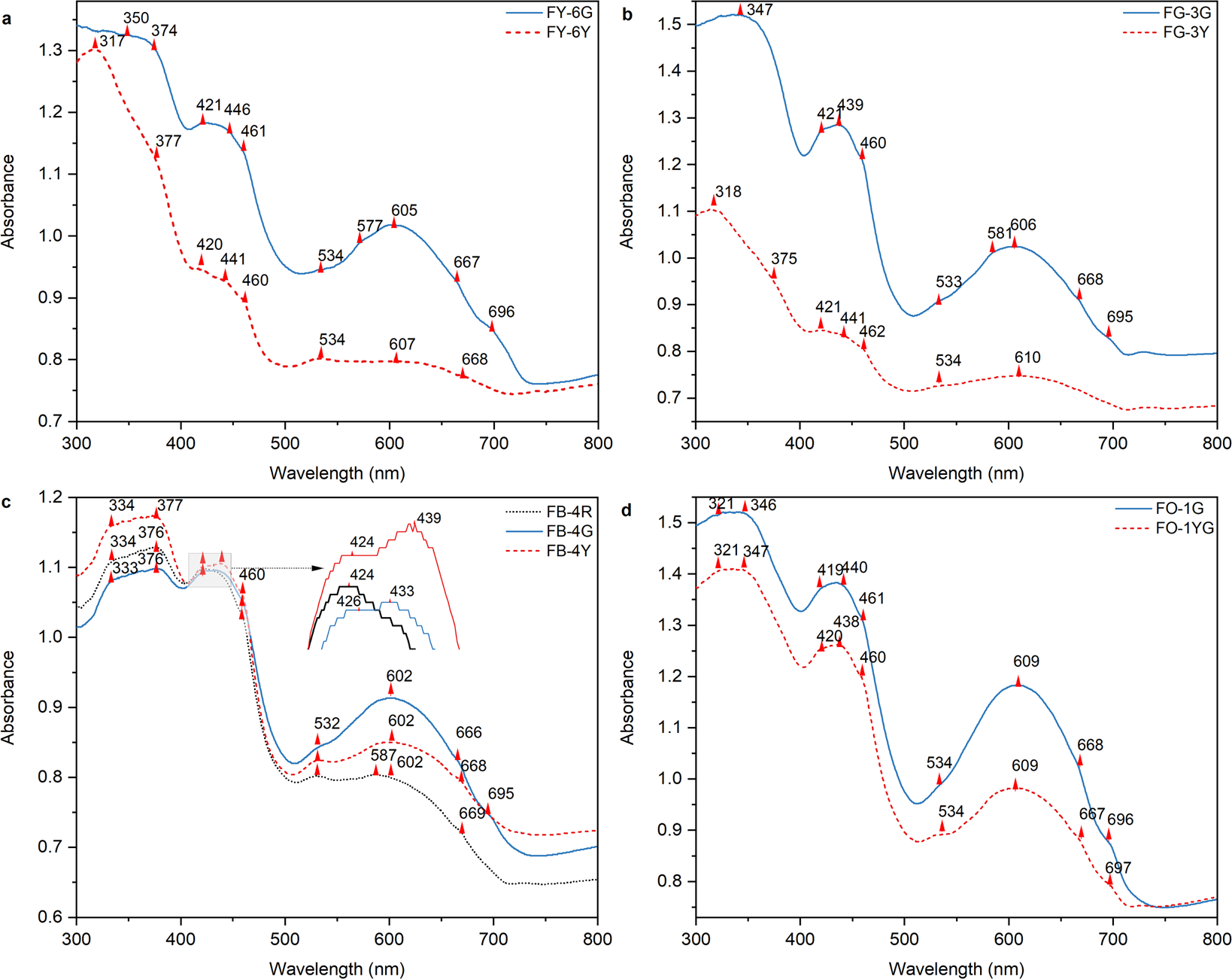

Figure 5

Optical absorption spectra for different color sites on FY-6 (a), FG-3 (b), FB-4 (c) and FO-1 (d). The red dashed line, blue solid line and black dotted line respectively represent the yellowish-green, green and reddish-brown zones of the californite samples.
