Figure 6
From: Discharge of deeply rooted fluids from submarine mud volcanism in the Taiwan accretionary prism

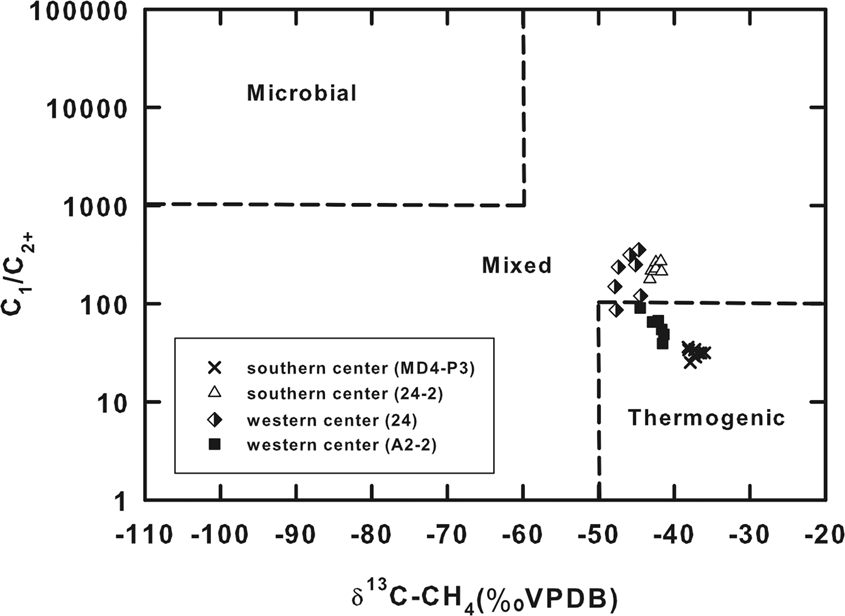

Plot of δ13C-CH4 value versus C1/C2+ ratio for samples collected at center sites. The assignment of gas origin is based on Bernard et al.76.
