Figure 5
From: Cavity-enhanced metallic metalens with improved Efficiency

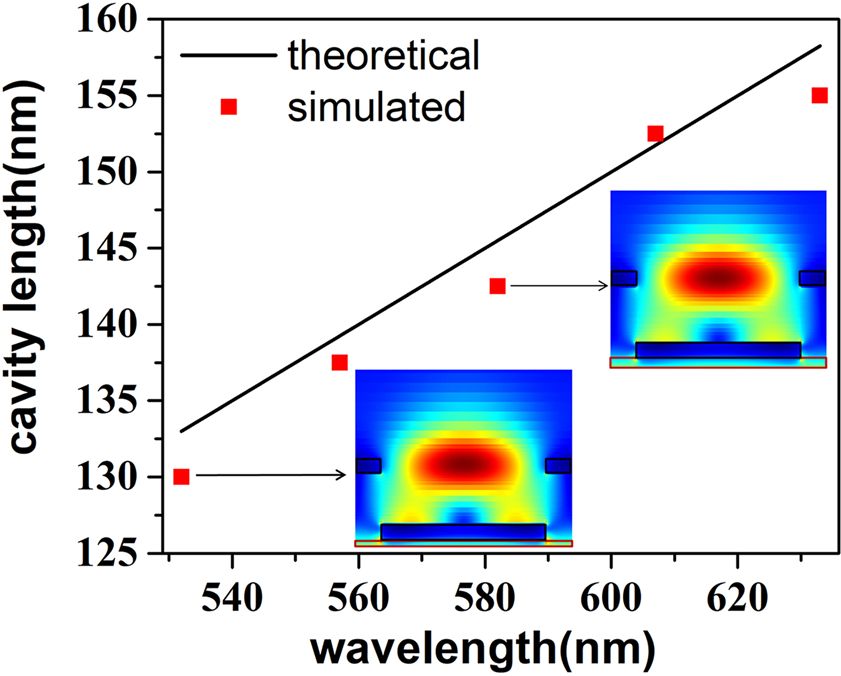

The optimized cavity lengths (with maximum efficiency) in BLM with respect to the working wavelengths. Here, the black line is theoretical prediction by cavity mode and the red square symbols are the simulation results. Two inset figures display the field distributions of optimized cavity at λ = 532 nm and 582 nm.
