From: Thermal damage of tungsten-armored plasma-facing components under high heat flux loads

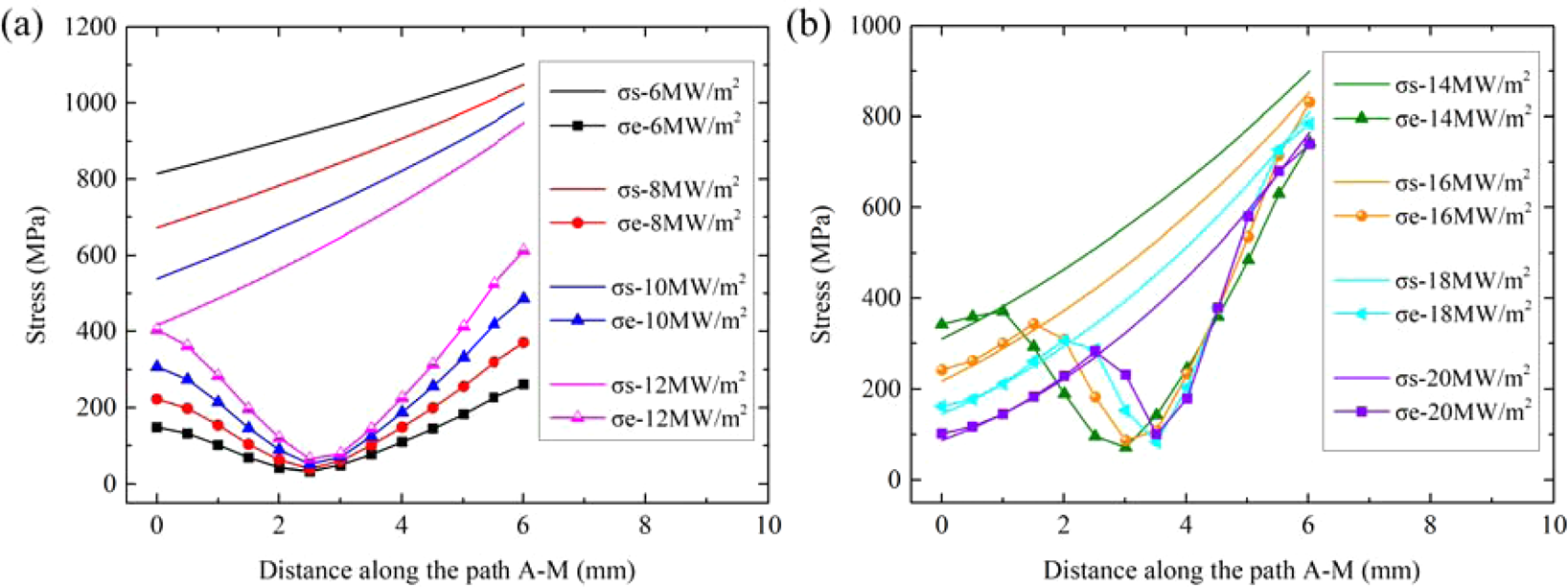

σe and σs on the path A-M under different steady-state heat flux loads: (a) 6–12 MW/m2; (b) 14–20 MW/m2.
