Figure 2
From: Removal of Refractory Dissolved Organic Carbon in the Amundsen Sea, Antarctica

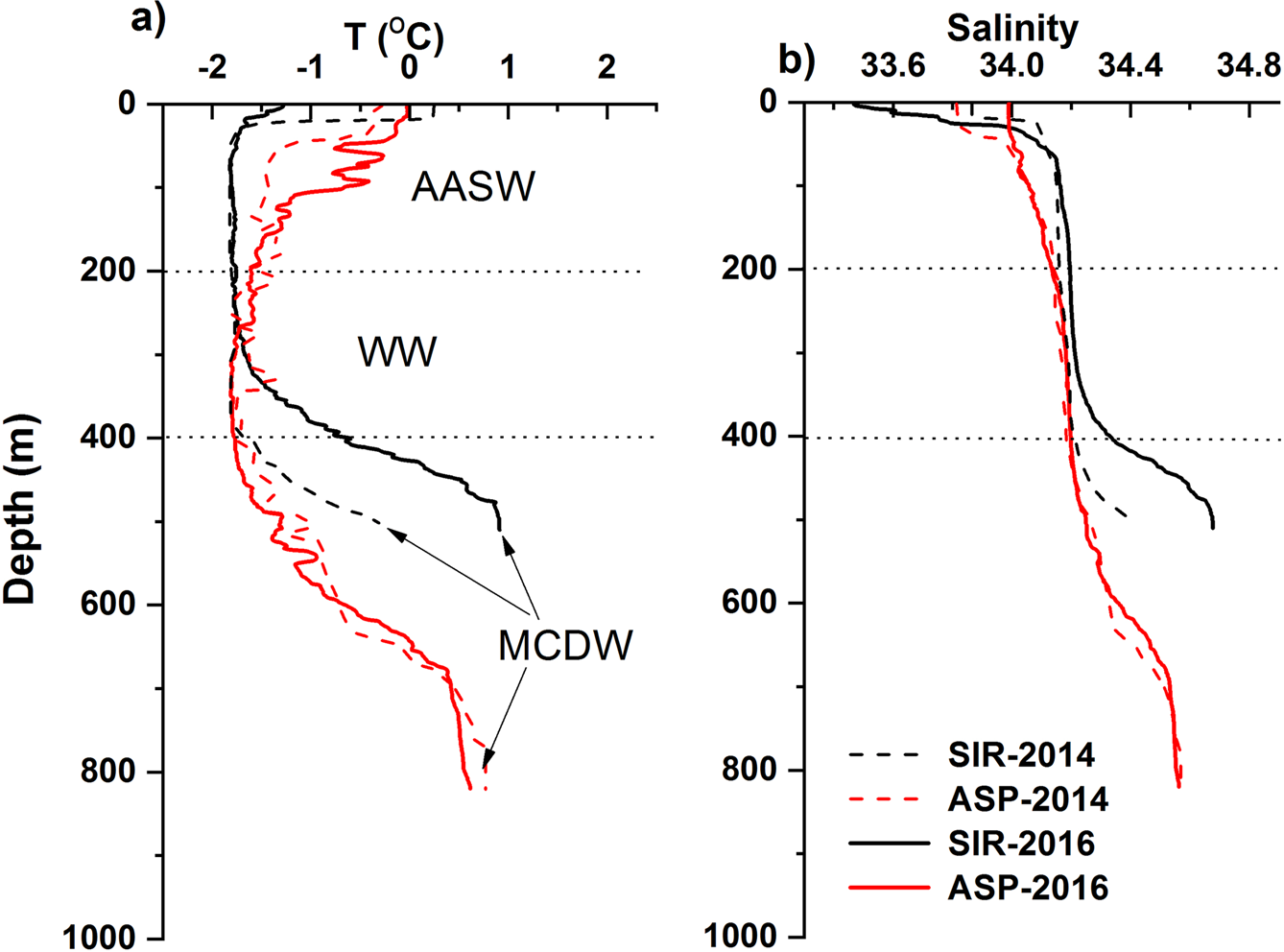

Vertical profiles of (a) potential temperature and (b) salinity at the stations in 2014 and 2016. The arrows indicate MCDW. AASW = Antarctic Surface Water; WW = Winter Water; MCDW = Modified Circumpolar Deep Water.
