Figure 1

From: Classification and Morphological Analysis of Vector Mosquitoes using Deep Convolutional Neural Networks

Figure 1

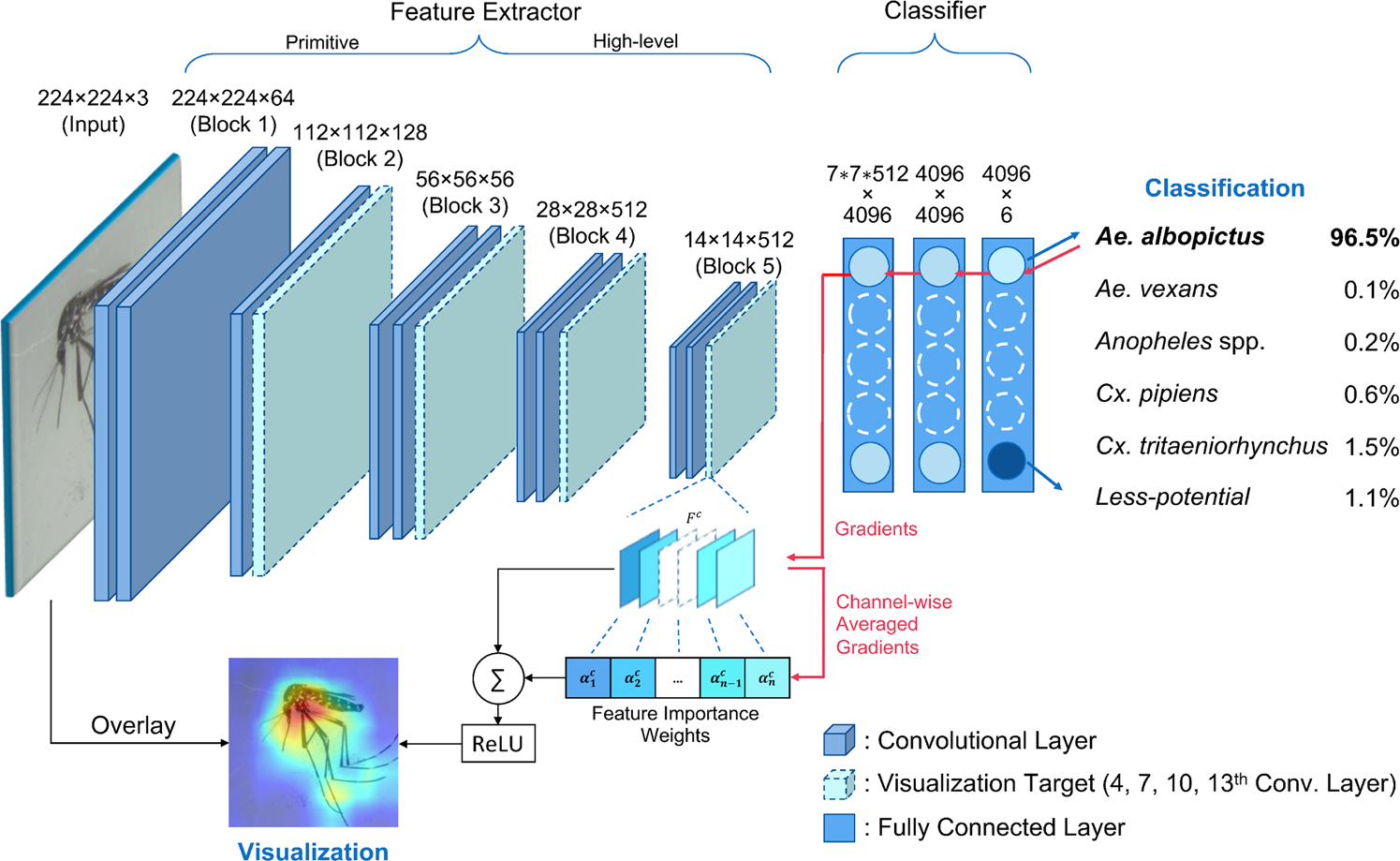

The flow of the classification and visualization in the VGG-16 DCNN model. The class of a given mosquito image is predicted by two steps: (1) extracting hierarchical features and (2) classifying these features. In the feature extractor part, feature maps generated by filters at each convolution layer are shown. These feature maps are used for visualization by weighting them with channel-wise averaged gradients.
