Figure 7

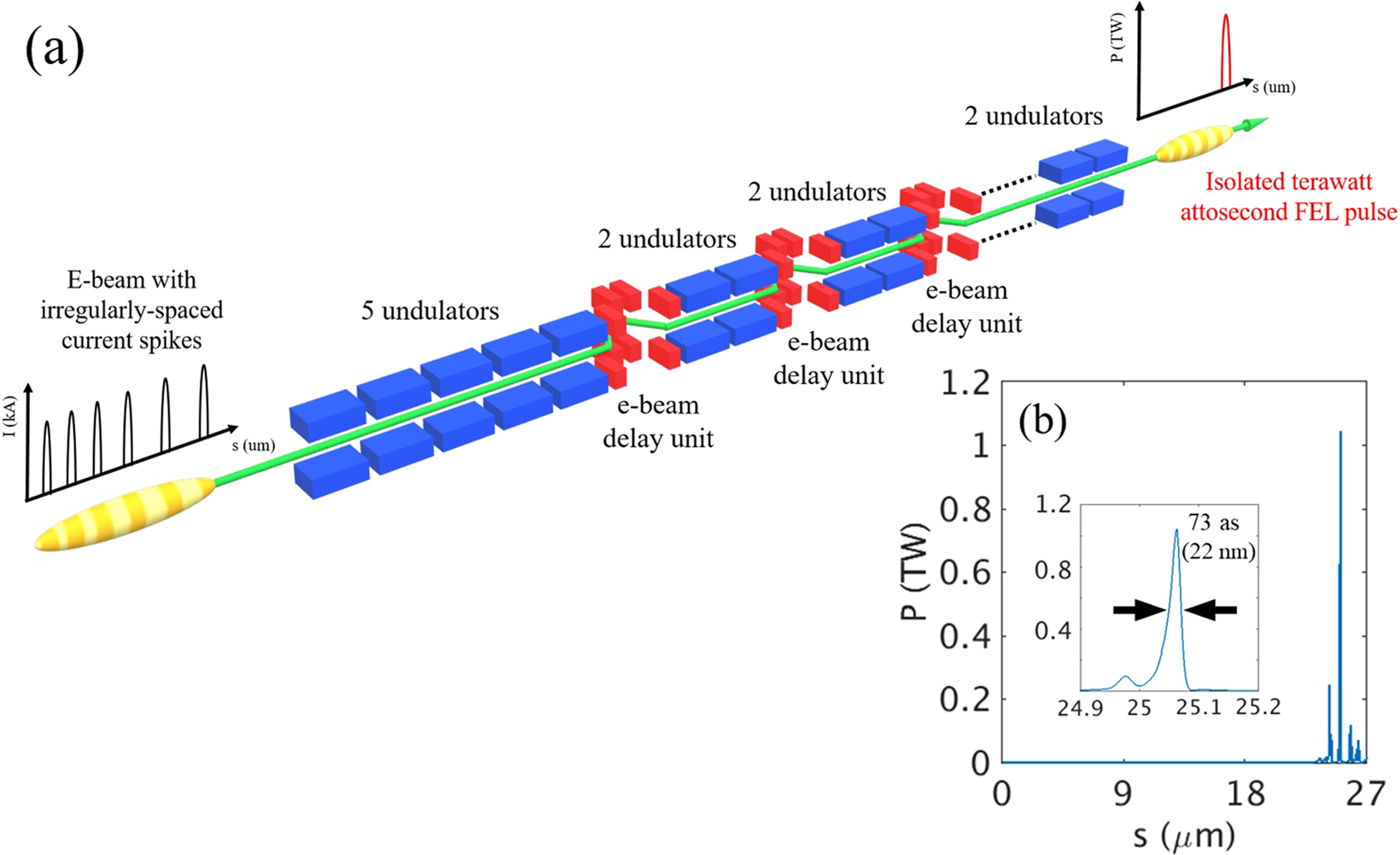

(a) Undulator section layout for multi current spike method. Red blocks: electron beam delay units between undulators. (b) Temporal profile of XFEL pulse with 23 undulators; inset: expanded view of main radiation pulse.

(a) Undulator section layout for multi current spike method. Red blocks: electron beam delay units between undulators. (b) Temporal profile of XFEL pulse with 23 undulators; inset: expanded view of main radiation pulse.
