Figure 3
From: ISOGO: Functional annotation of protein-coding splice variants

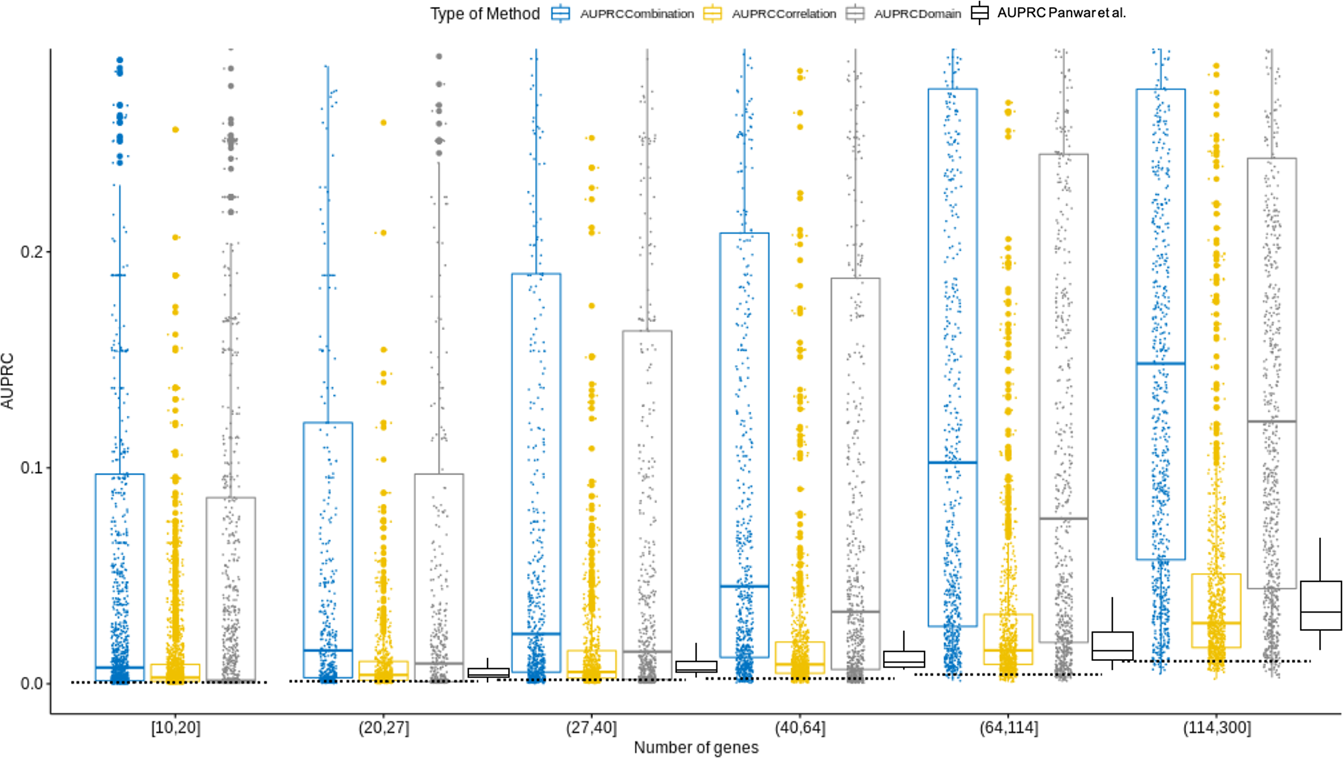

AUPRC comparison, depending on the number of genes per GO term. Legend as for Fig. 2 (blue boxplots are combination method, yellow ones are Correlation method, grey ones are Domain-based regression and black ones are the result from Panwar et al.). The dotted black line represents the AUPRC of a random classifier. This value depends on the number of genes per category.
