Figure 2
From: Internal short circuit detection in Li-ion batteries using supervised machine learning

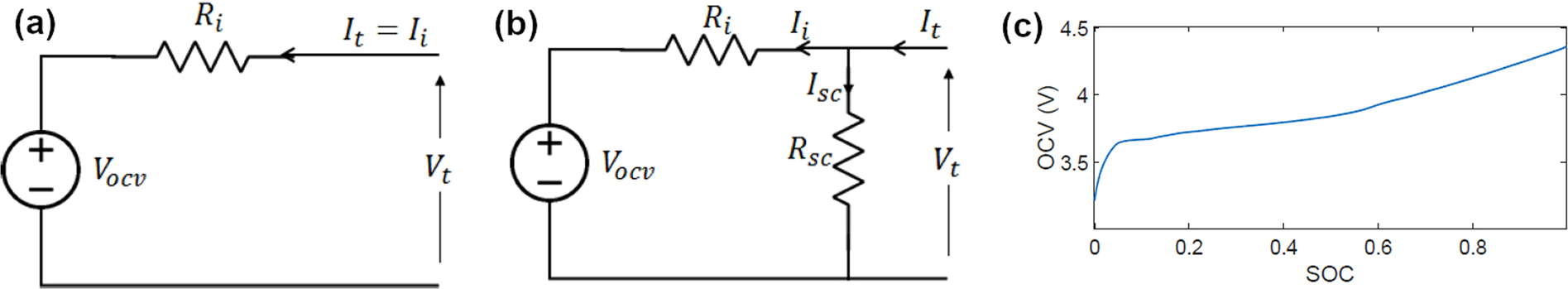

Battery electrical equivalent circuit for (a) Healthy battery, (b) Faulty battery and (c) SOC vs OCV curve during discharge.
Figure 2 | Scientific Reports
