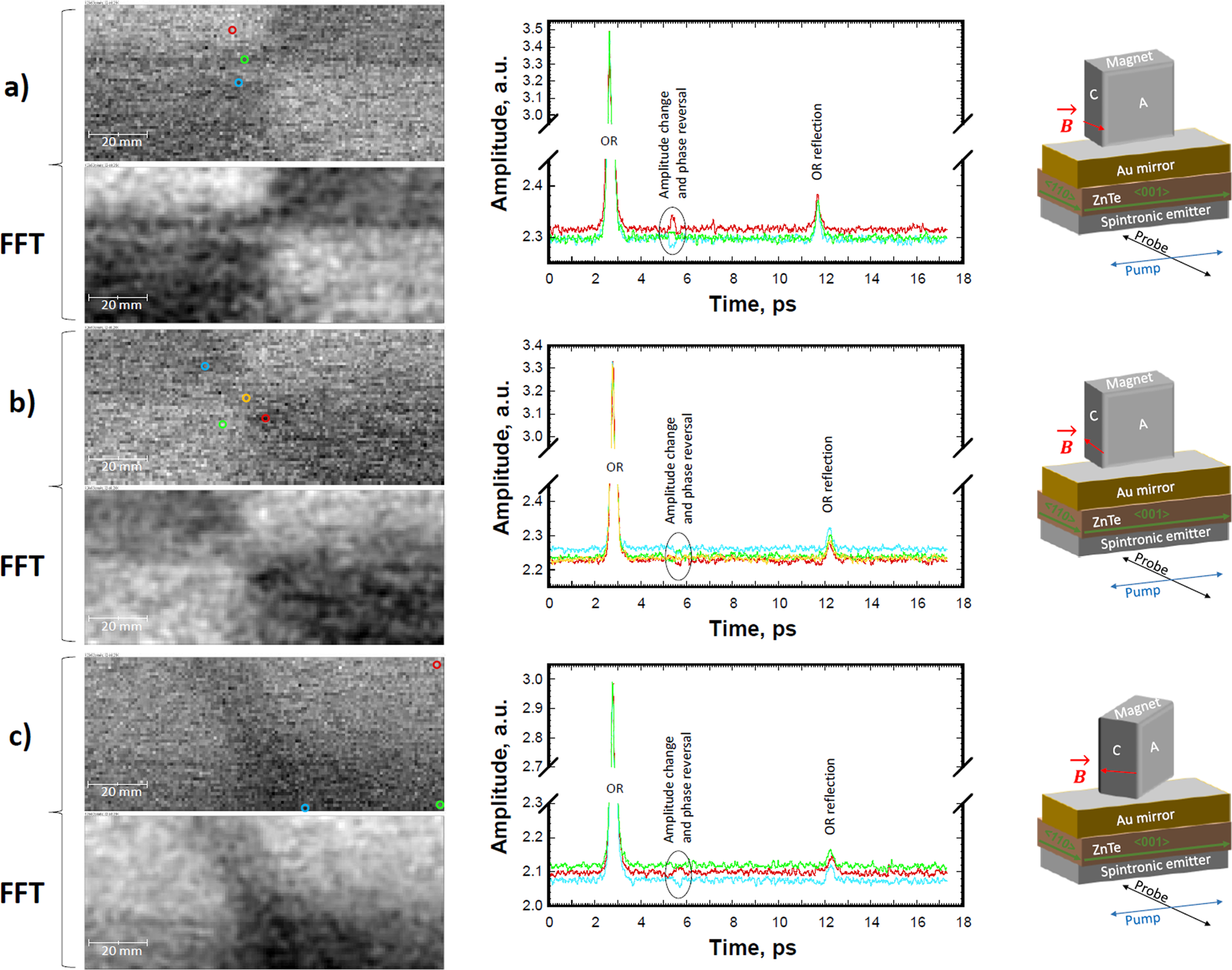

Figure 5
MOI results with different permanent magnet orientation with respect to the on-chip THz sensor. The magnet in (a), (b), and (c) was ~5 mm above the spintronic layer surface. The waveform colours correspond to ones of the circles, which indicate the spatial positions on images for their collections.
