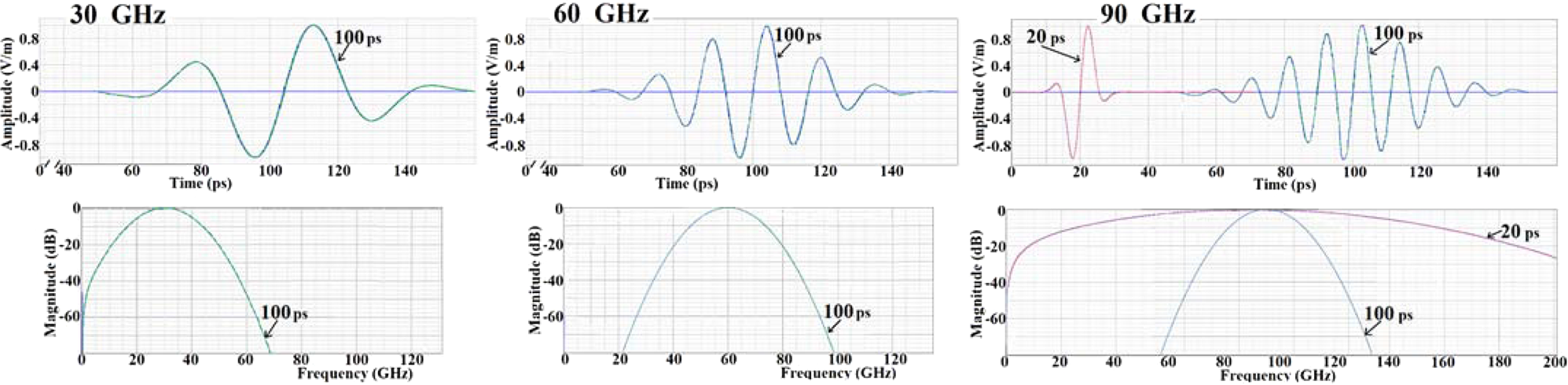

Figure 3

The time domain characteristics and bandwidth of the excitations of the 100 ps duration of 30, 60 and 90 GHz, pulses, and the 90 GHz 20 ps pulse. The excitation amplitude shown is before the adjustment to the notional incident radiation to 61.4 Vm⁻¹ and 137 Vm⁻¹ for comparison with ICNIRP (1998) standards.
