From: Design and characterization of an acoustic composite lens with high-intensity and directionally controllable focusing

Figure 7

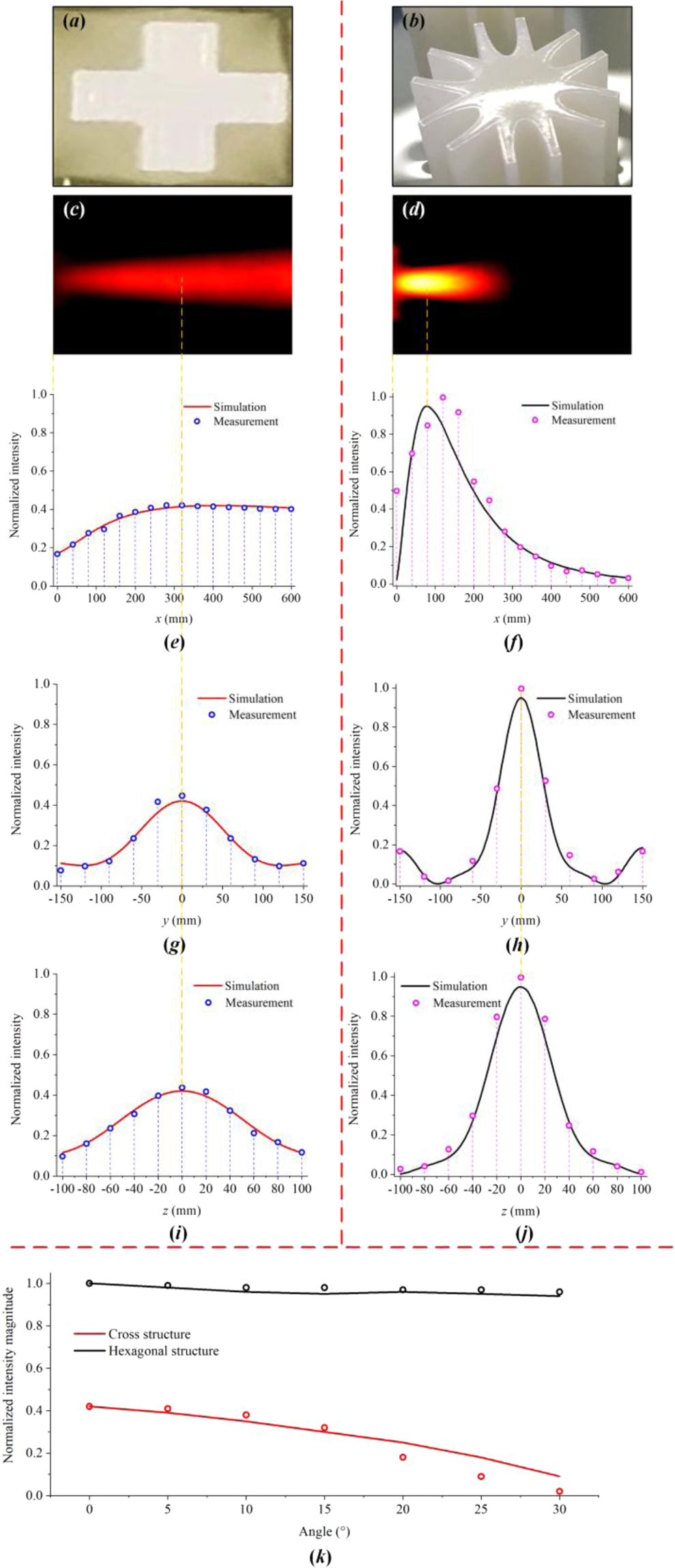

Simulated and experimental results and wave intensity distributions along each axis: (a,b) Unit cell shapes for the CS- and CH-structured lenses used in the experiments. (c,d) Experimental images. (e,j) Normalized wave intensity distributions along the x-, y- and z-directions. (k) Wave intensities at the focal positions with different incidence angles and unit cell structures.
