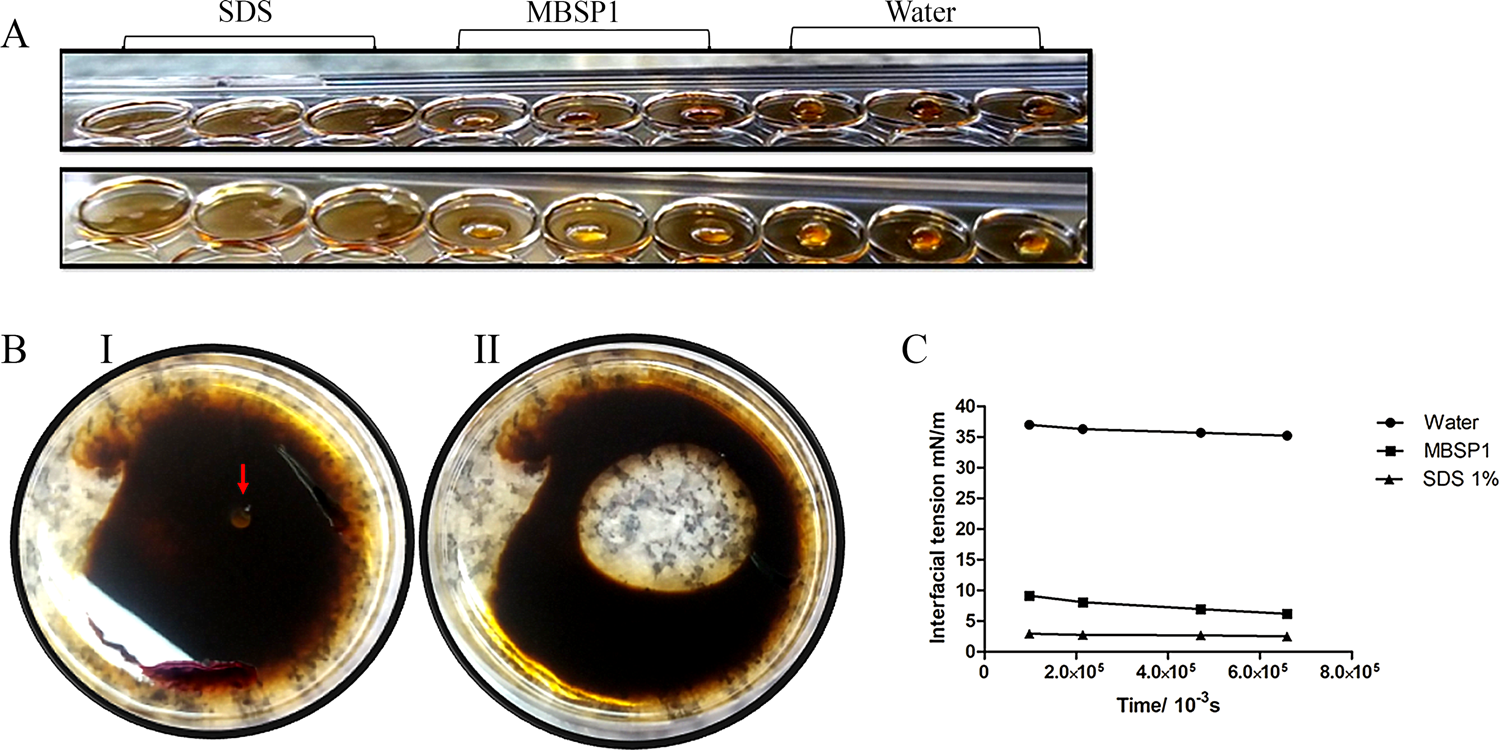

Figure 5
From: MBSP1: a biosurfactant protein derived from a metagenomic library with activity in oil degradation
Biosurfactant activity of MBSP1 obtained by acid precipitation: (A) Drop collapse: a triplicate test evidencing collapsed drop in oil of both SDS positive control and biosurfactant. The water kept the formation of drops intact. (B) Oil dispersion test: I- MBSP1 added to plate (red arrow); II-Dispersion oil forming a halo caused by presence of MBSP1. (C) Interfacial tension. Mean values of interfacial tension of water, MBSP1 and synthetic surfactant SDS 1% against petroleum.
