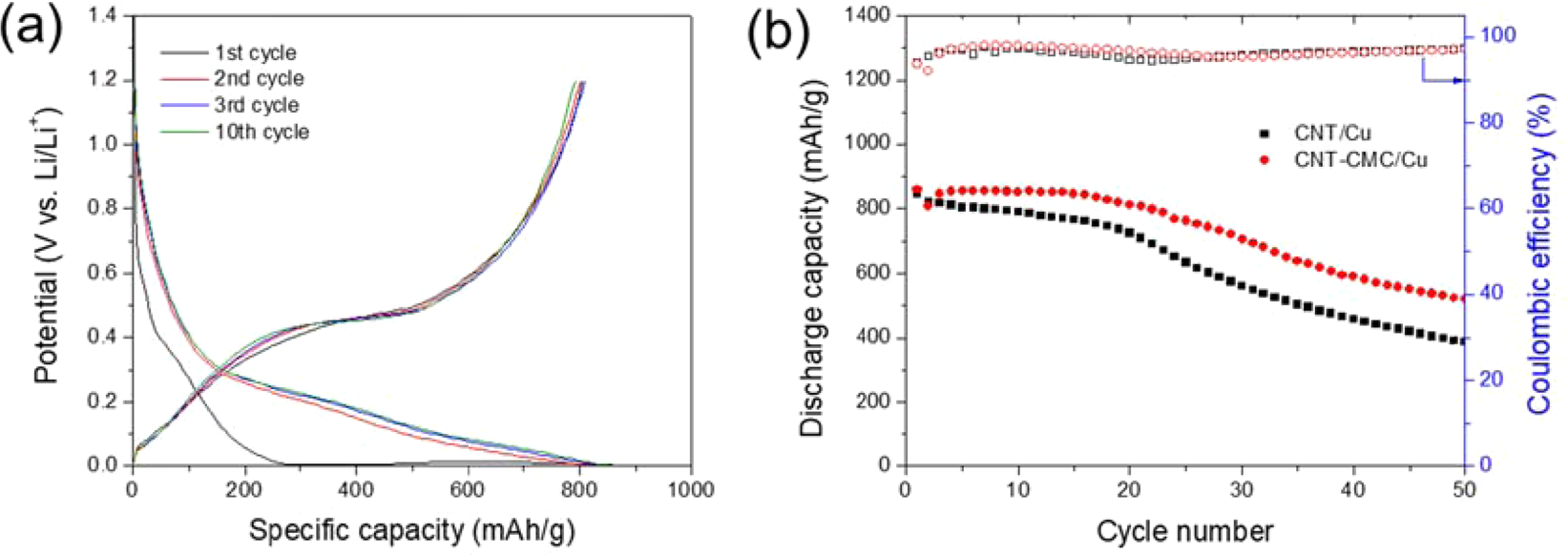

Figure 7
Effect of the modification of carbon-coated Cu current collector surface with CMC on the battery performance; (a) galvanostatic charge-discharge profiles of CNTs/EDC/NH2-Si@C using a modified current collector at a current density of 0.5 A g−1 and (b) the corresponding cycling performance.
