Figure 7

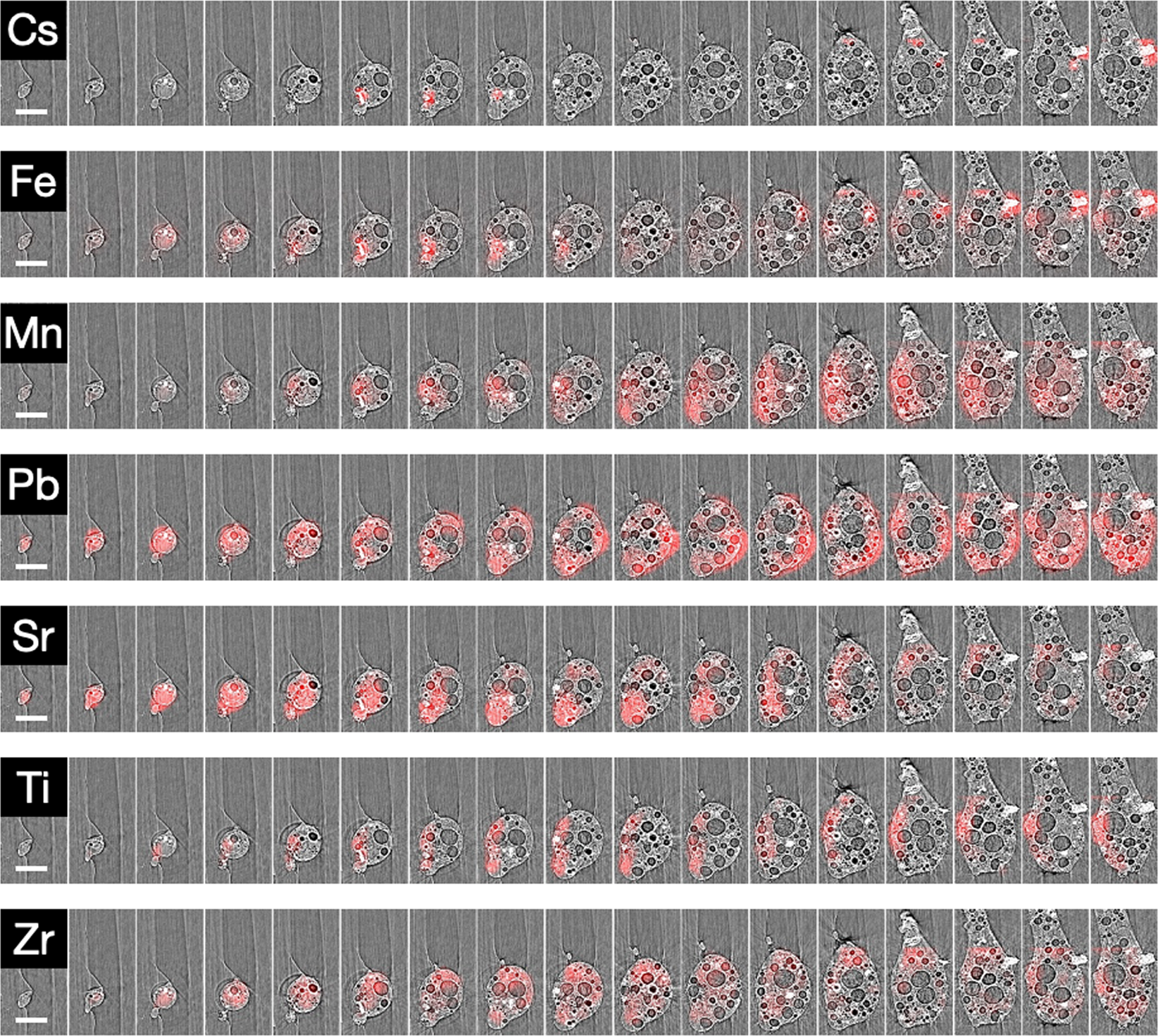

SR-µ-XRT sections through the lower portion of the particle, overlain with SR-µ-XRF data. The location of species is determined following a background spectrum (Kapton) subtraction from the signal obtained at every other stage position. (scale bar = 100 μm).
