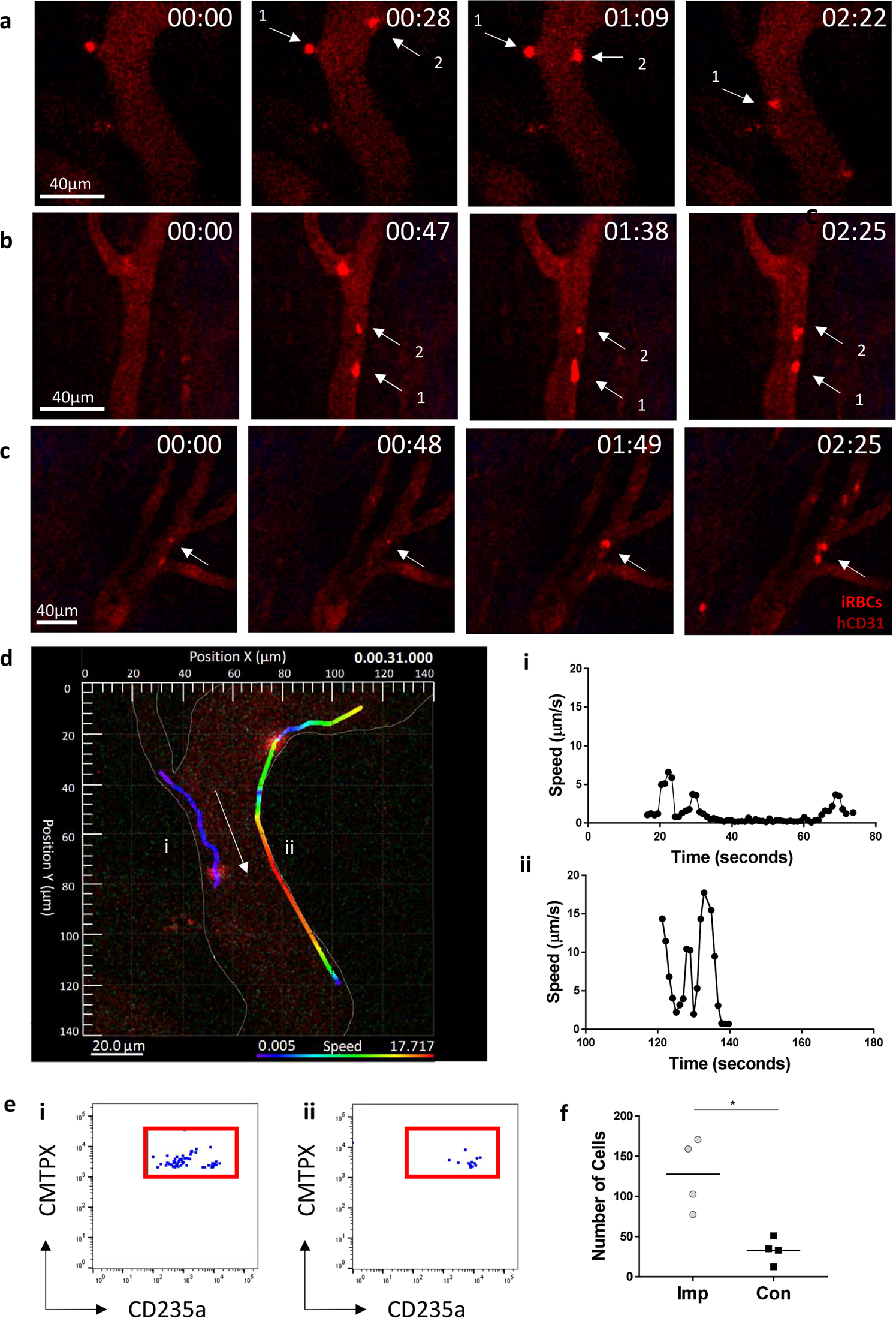

Figure 4

P. falciparum cytoadherence can be observed in human blood vessels. Intravital imaging was performed using a multiphoton microscope. Mice were pre-treated with TNFα, unlabelled, uninfected RBCs, and AF647 labelled anti-human CD31 antibody. Labelled iRBCs were then injected into the tail vein of the mice. (a) Tethering and rolling (b) adherence of iRBCs to blood vessel walls (c) and collections of iRBCs around blood vessel junctions were all observed. n = 3, three independent experiments. (d) An example of imaging analysis indicated differences in the speed of sequestering cells over time in two different iRBCs (i & ii). Arrow indicates direction of blood flow. Rainbow bar indicates speed of iRBC in blood vessel. Flow cytometry was performed on the (e)(i) implant and (ii) control ears to compare the (f) number of iRBCs in the tissues. n = 4, from one independent experiment. Statistical analysis was performed using a paired T test, *p < 0.05.
