Figure 2 | Scientific Reports

Figure 2

From: Upregulation of GPNCA is associated with poor prognosis through enhancement of tumor growth via regulating GSK3B

Figure 2

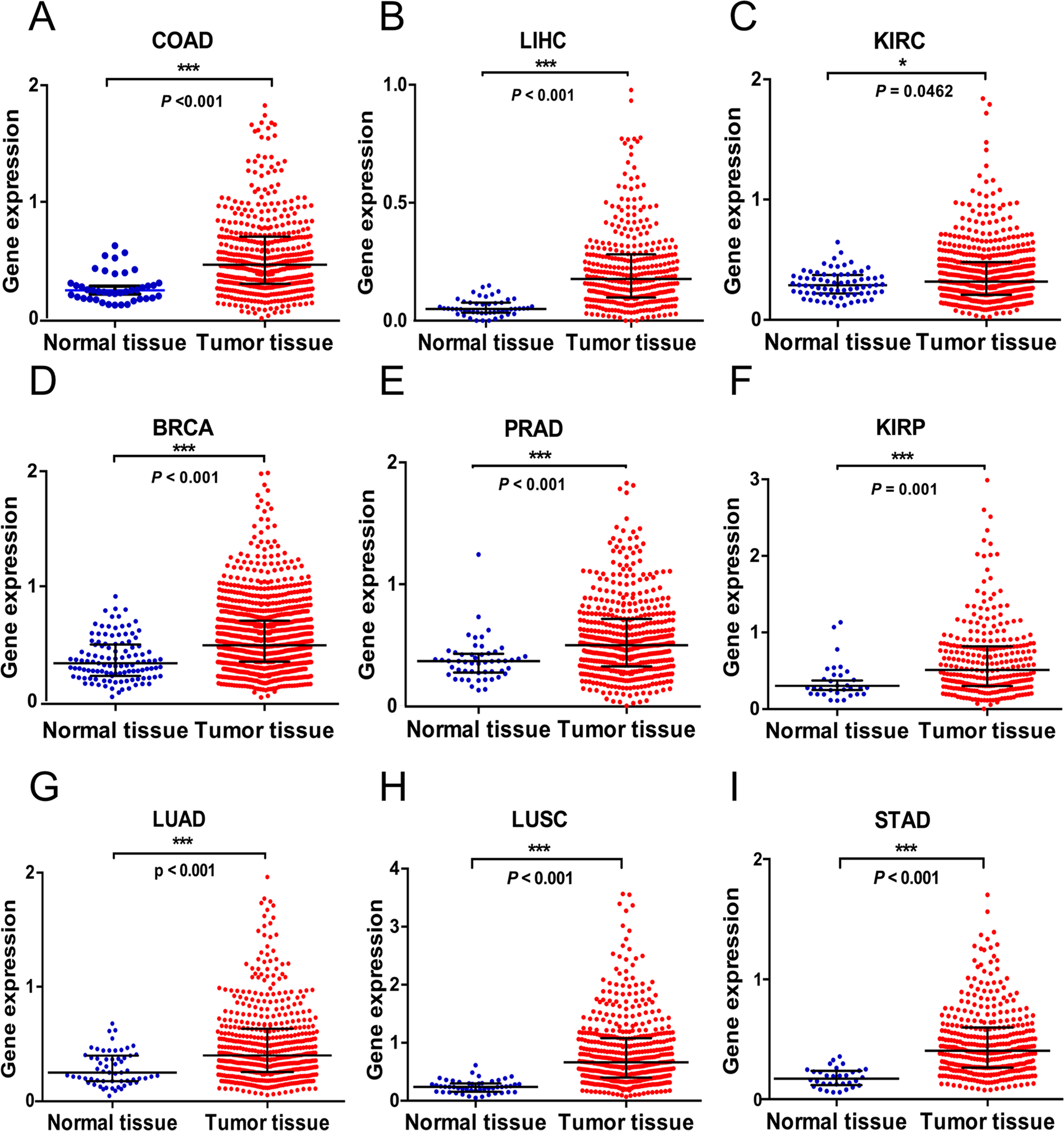

GPNCA is up-regulated in different solid tumors. Expression of GPNCA in TCGA: (A) Colon adenocarcinoma (COAD) tumor tissue (n = 480) and normal tissue (n = 41), (B) Liver hepatocellular carcinoma (LIHC) tumor tissue (n = 374) and normal tissue (n = 50), (C) Kidney renal clear cell carcinoma (KIRC) tumor tissue (n = 538) and normal tissue (n = 72), (D) Breast invasive carcinoma (BRCA) tumor tissue (n = 1102) and normal tissue (n = 113), (E) Prostate adenocarcinoma (PRAD) tumor tissue (n = 499) and normal tissue (n = 52), (F) Kidney renal papillary cell KIRP carcinoma (KIRP) tumor tissue (n = 288) and normal tissue (n = 32), (G) Lung adenocarcinoma (LUAD) tumor tissue (n = 533) and normal tissue (n = 59), (H) Lung squamous cell carcinoma (LUSC) tumor tissue (n = 502) and normal tissue (n = 49), (I) Stomach adenocarcinoma (STAD) tumor tissue (n = 375) and normal tissue (n = 32). Data were showed as median with interquartile range, *p < 0.05, **p < 0.01, ***p < 0.001.
