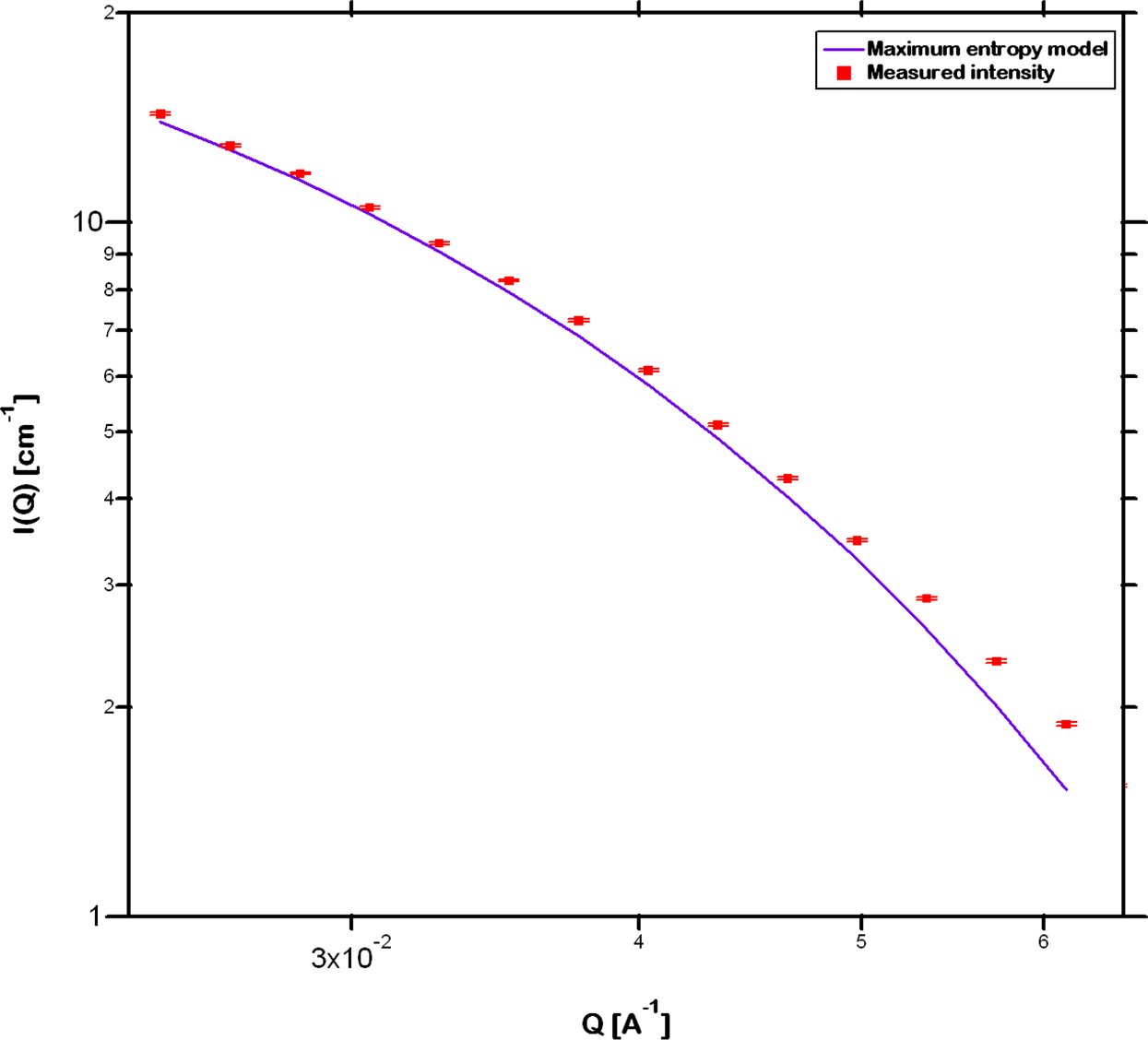

Figure 4

Representative fit of the maximum entropy model to the measured small angle neutron scattering intensity over a Q-range of 0.02 to 0.06 Å⁻¹ utilized to analyze the distribution of size and volume fraction of (Fe,Cr)₂₃C₆ crystals. The fitted model agrees well with the measured data.
