Figure 5

From: Broadband microwave coding metamaterial absorbers

Figure 5The alternative text for this image may have been generated using AI.

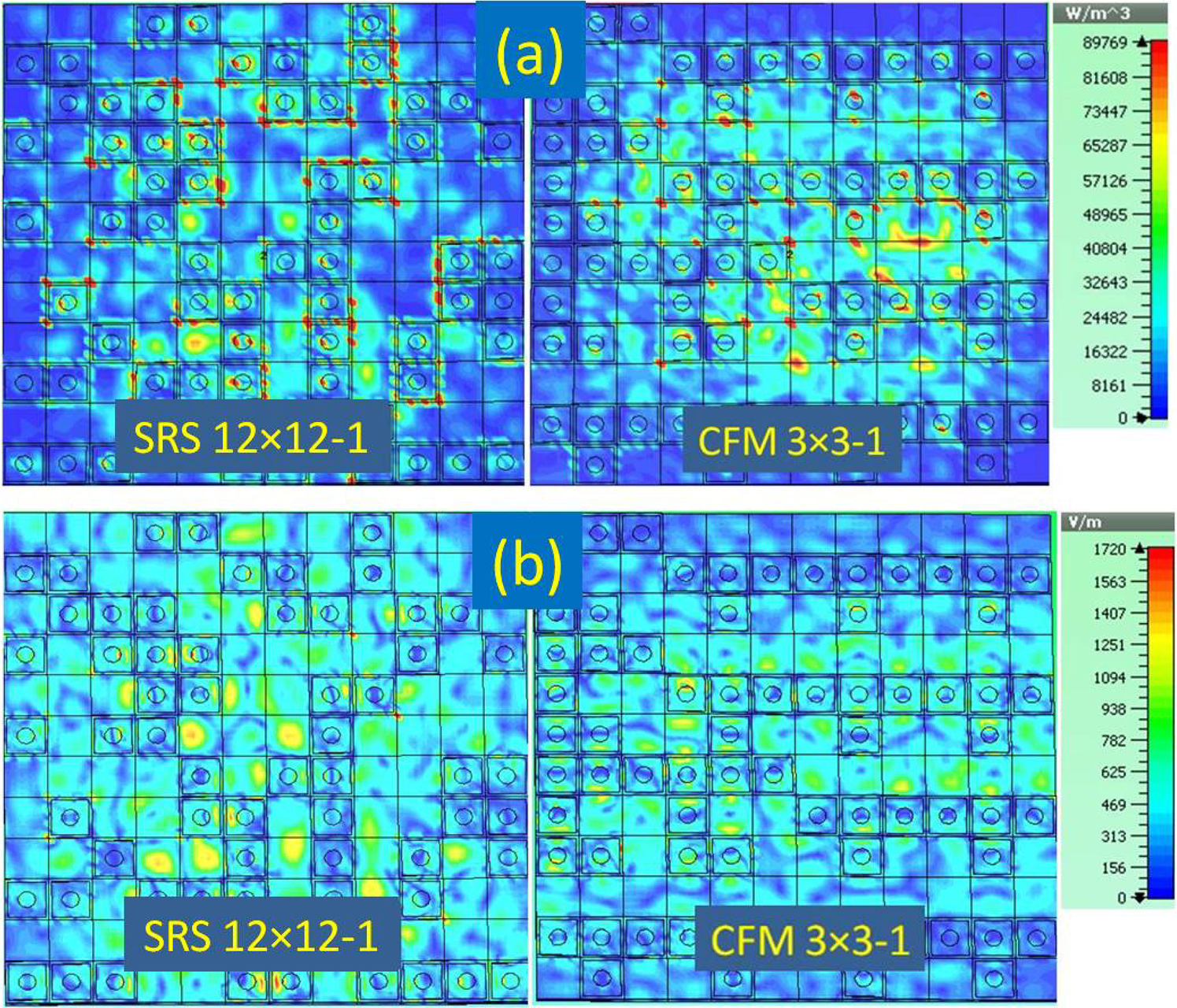

(a) The simulated power loss energy density on SRS and CFM structures at 25 GHz, which is in the absorption frequency range of the full-sized absorbers; (b) The simulated electric field density on SRS and CFM structures at 25 GHz.
