From: Switchable crossed spin conductance in a graphene-based junction: The role of spin-orbit coupling

Figure 1

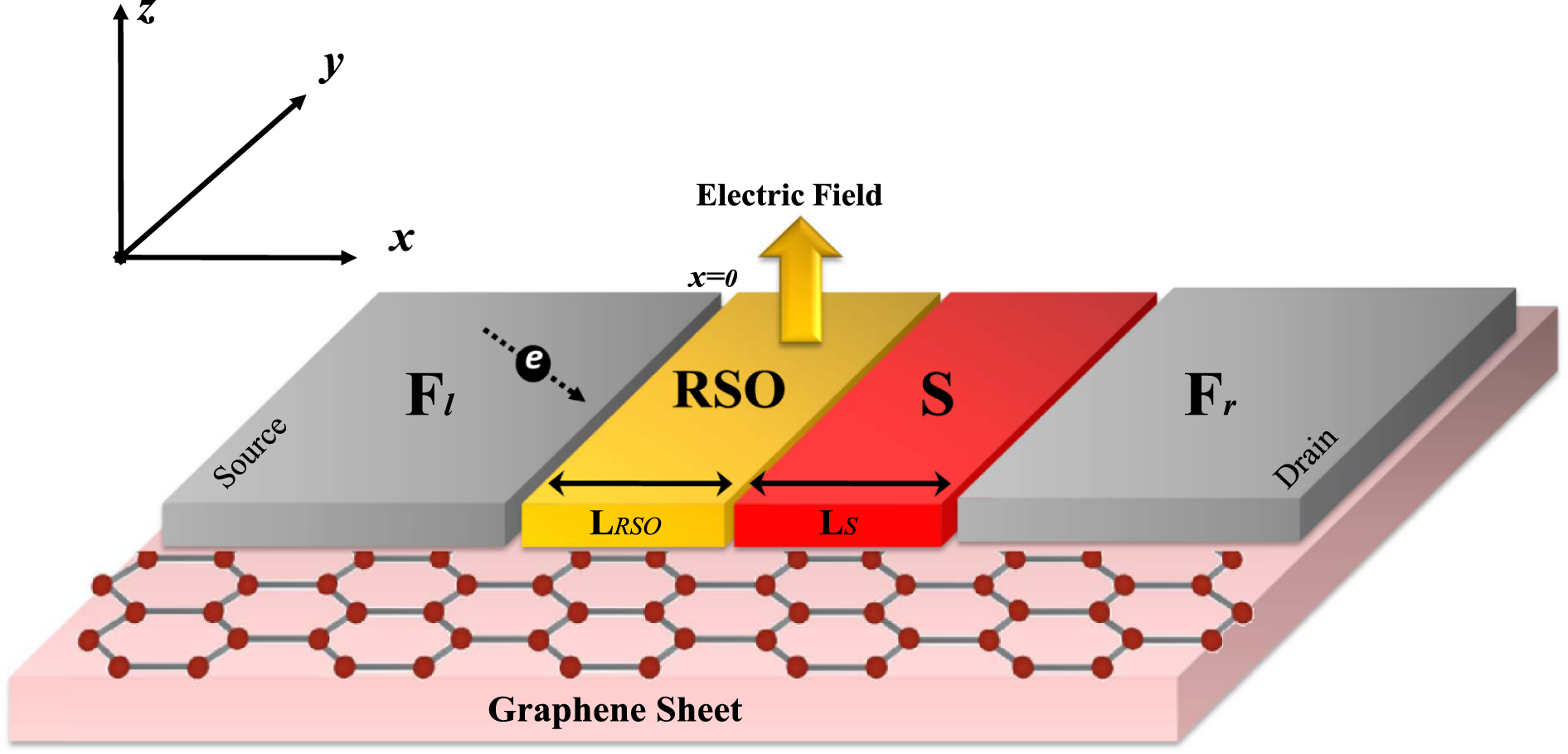

Schematic of the graphene based F-RSO-S-F heterostructure. The sheet of graphene resides in the x − y plane. The length of the RSO and S regions are denoted by LRSO and LS. The exchange field of the ferromagnetic source and drain leads (\({\overrightarrow{h}}_{l,r}\)) are assumed fixed along the z axis. This graph drawn by LibreOffice 6.3.4, https://www.libreoffice.org/download/download/?type=deb-x86_64amp;version=6.3.4amp;lang=en-US.
