Figure 5
From: Organelle inheritance and genome architecture variation in isogamous brown algae

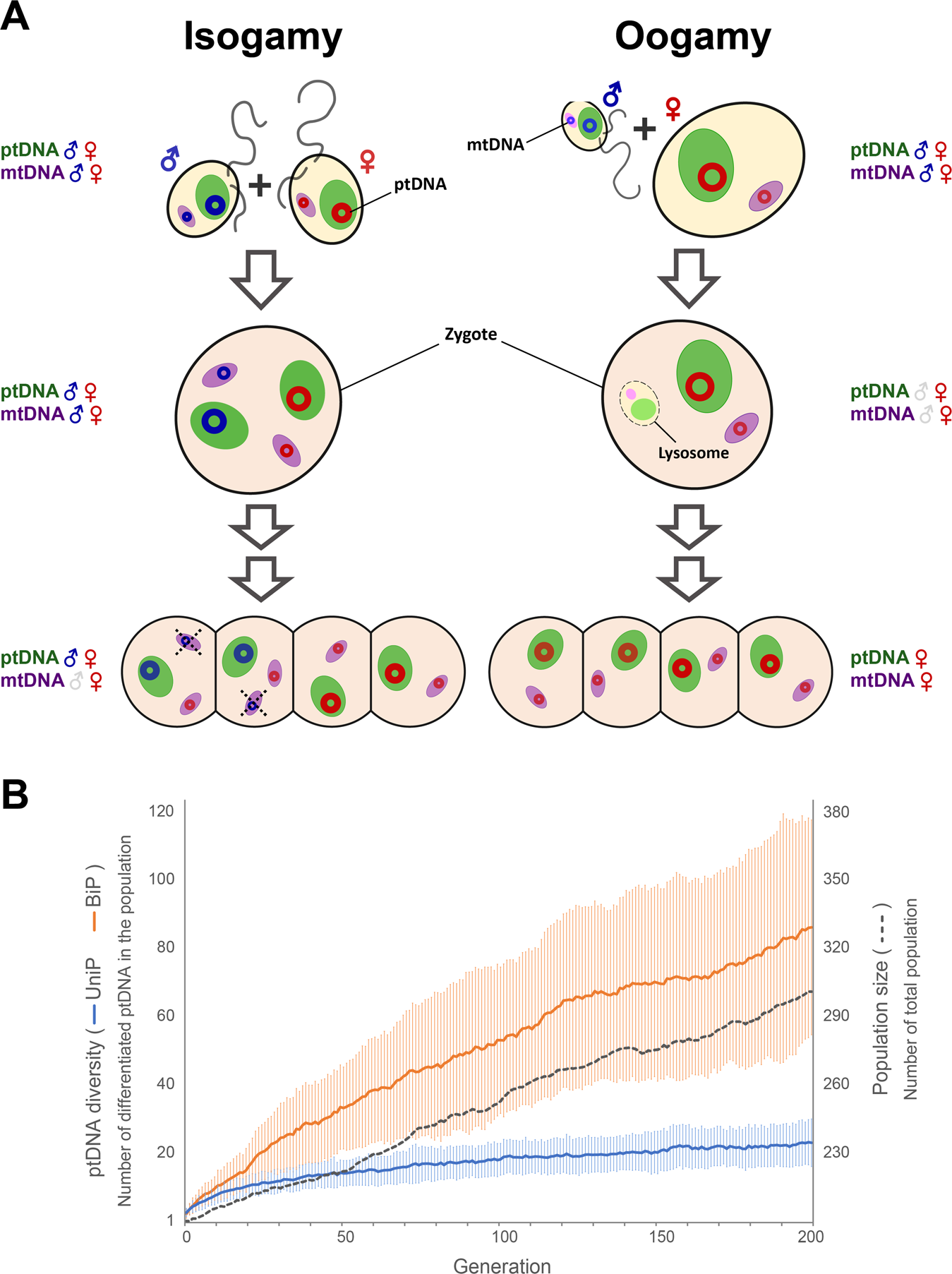

Organelle inheritance in isogamous and oogamous brown algae. (A) The process of organelle inheritance and elimination. Red and blue circles indicate circular DNA from female and male gametes. Mitochondria are eliminated at the zygote stage in oogamous species or at the 4-cell sporophyte stage in isogamous species. Only maternal inheritance of mitochondria is shown for isogamous species, but note that paternal inheritance has been detected in some strains of Ectocarpus23. (B) Simulation of changes in ptDNA diversity (number of differentiated ptDNA) in two populations under the same conditions except for the inheritance mode of plastids (biparental or uniparental). Starting with a single original ptDNA genotype, the diversity of ptDNA steadily increases due to mutations in both populations, but this occurs much more rapidly in the biparental (BiP) population. The increase in ptDNA diversity in the BiP population (Orange line) is proportional to the increase in population size, while the diversity in the uniparental (UniP, Blue line) population increases more slowly because half of the modified ptDNA is eliminated. Error bars for each population show standard deviations of 100 replicated results. The script used for simulation is in Supplementary Information with instructions.
